Schematic Diagram

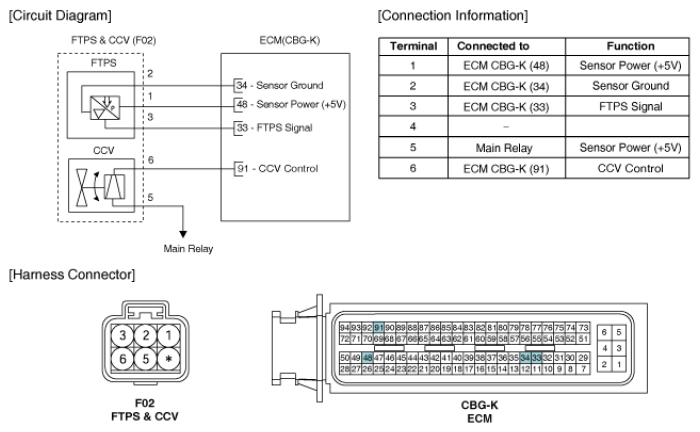

Fig 1: Canister Close Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
