Repair procedures (A4CF2): Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air duct.
  4. Remove the air cleaner assembly. (Refer to air cleaner assembly air cleaner assembly )
  5. Disconnect the inhibitor switch connector (A).

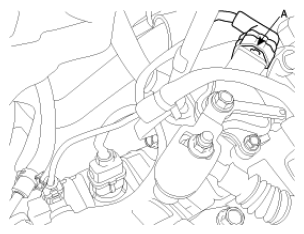

    Fig 1: Disconnecting Inhibitor Switch Connector
    G06863436Courtesy of HYUNDAI MOTOR CO.
  6. Remove the control cable (A) from the manual control lever.
    Fig 2: Removing Control Cable From Manual Control Lever
    G06863437Courtesy of HYUNDAI MOTOR CO.
  7. Remove the inhibitor switch and manual control lever.
