Repair procedures (A4CF2): Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air duct.
  4. Remove the air cleaner assembly. (Refer to air cleaner assembly )
  5. Remove the input shaft speed sensor connector (A).

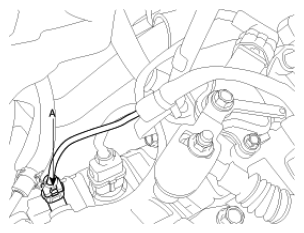

    6. Fig 1: Removing Input Shaft Speed Sensor Connector
    G06863419Courtesy of HYUNDAI MOTOR CO.
  6. Remove the input shaft speed sensor (A).
    Fig 2: Removing Input Shaft Speed Sensor
    G06863420Courtesy of HYUNDAI MOTOR CO.
