Fuel System - Specifications
Specifications
Sensors

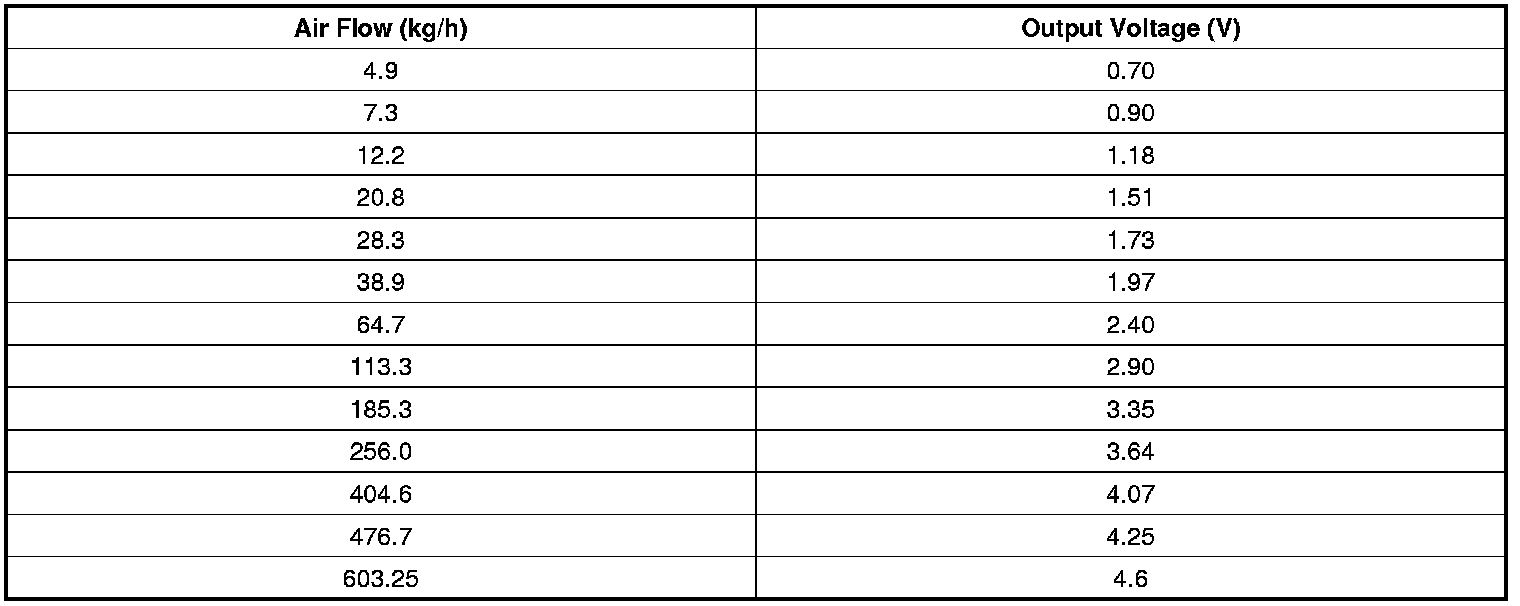

MASS AIR FLOW SENSOR (MAFS)
- Type: Hot-film type
- Specification
