Monitor Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel. (Refer to CRASH PAD ))

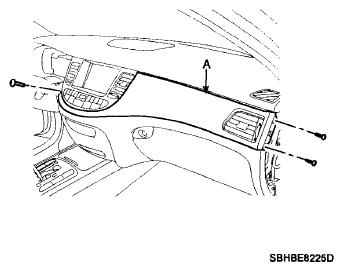

  3. Remove the crash pad side garnish (A) after removing the screws.
    Fig 1: Identifying Crash Pad Side Garnish With Screws
    G06103541Courtesy of HYUNDAI MOTOR CO.

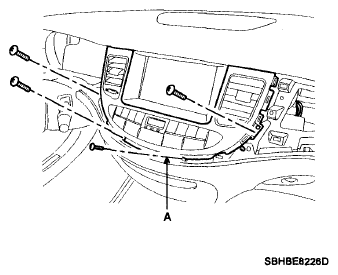

  4. Remove the center fascia panel (A) after removing the screws.
    Fig 2: Identifying Center Fascia Panel With Screws
    G06103542Courtesy of HYUNDAI MOTOR CO.

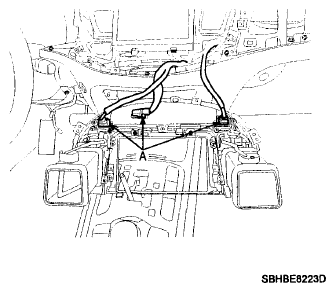

  5. Remove the connectors (A).
    Fig 3: Identifying Monitor Unit Connectors
    G06103539Courtesy of HYUNDAI MOTOR CO.

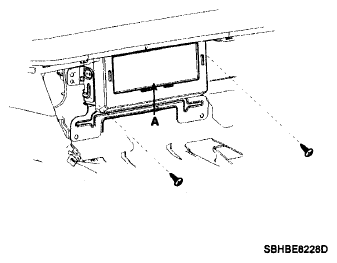

  6. Remove the monitor unit (A) after removing the screws.
    Fig 4: Identifying Monitor Unit With Screws
    G06103544Courtesy of HYUNDAI MOTOR CO.
