Engine Control System (Fuel System (G6DB/G6DA - GSL 3.3/3.8))
>>
CVVT Oil Temperature Sensor (OTS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

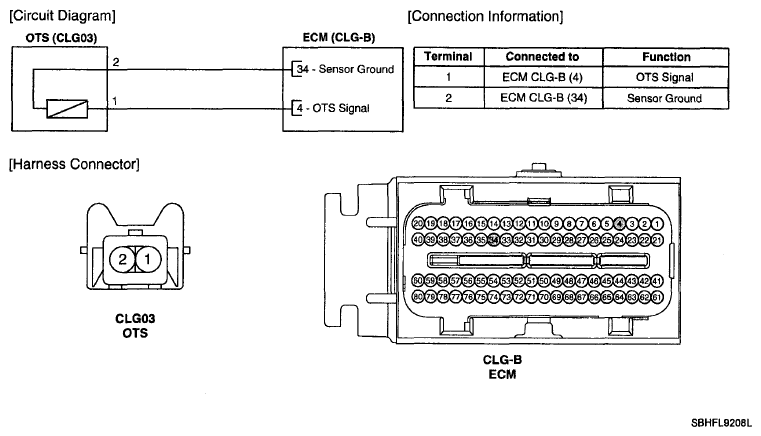

Fig 1: OTS Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
