Shift Lever: Components

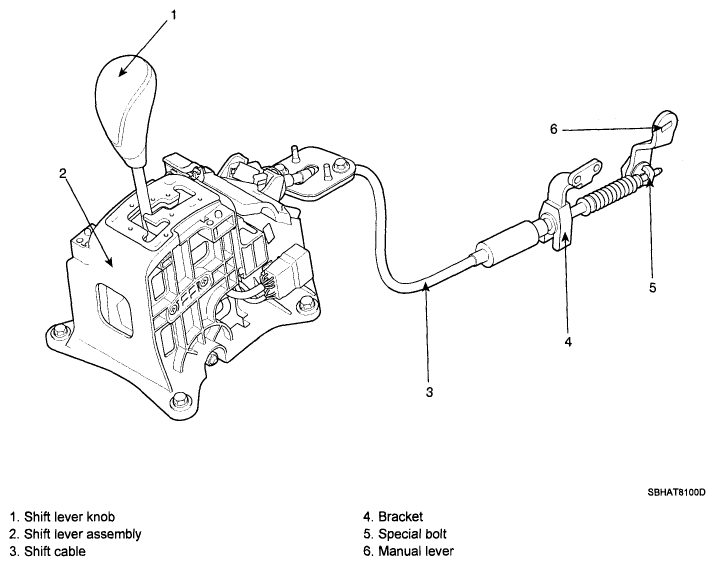

Fig 1: Identifying Shift Lever Components
G06106412Courtesy of HYUNDAI MOTOR CO.
