Transaxle Oil Temperature Sensor: Installation
- Insert a new "0" ring to the transmission wire and install the wire through the hole on the transmission case.
O-ring size:
inner dia.-21.80mm (0.858in), thickness-2.40mm (0.0945in)

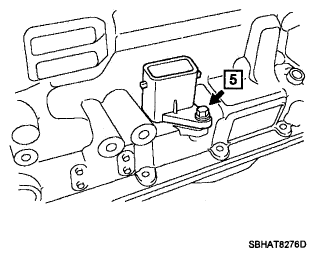

- Install the bolt to place the connector on the transmission case.
Tightening torque :
4~7 Nm (0.4~0.7 kgf.m, 2.89~5.06 lb-ft)
Bolt size (5): M6x1.0x21mm

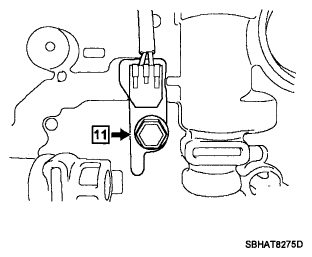

- Install the ATF temperature sensor and the lock plate with the bolt to the valve body assembly.
Tightening torque :
8.2~12.0 Nm (0.82~1.20 kgf.m, 5.93~8.68 lb-ft)
Bolt size (11): M6x1.0x12mm

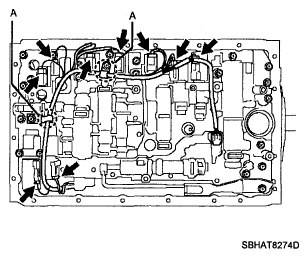

- Connect the transmission wire to the 2 clamps (A) and the 9 solenoid connectors to the solenoids.
- Coat a new "O" ring with ATF and install it to the oil strainer.
O-ring size:
inner dia.-31.00mm (1.22in), thickness-2.72mm (0.107in)

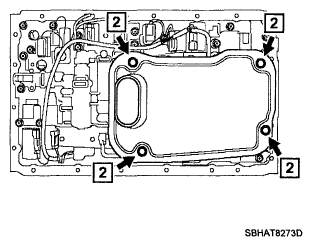

- Install the oil strainer with the 4 bolts to the valve body assembly.
Tightening torque :
8.2~12.2 Nm (0.82~1.22 kgf.m, 5.93~8.82 lb-ft)
Bolt size (11): M6x1.0x16mm
- Clean the contact surfaces of oil pan and transmission case.

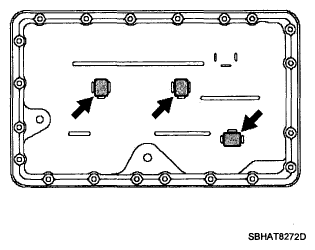

- Install the 3 oil cleaner magnets to the oil pan.

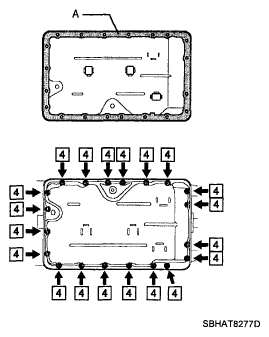

- install a new oil pan gasket (A) and the oil pan to the transmission case by tightening the 20 bolts.
Tightening torque :
6~8 Nm (0.6~0.8 kgf.m, 4.34~5.78 lb-ft)
Bolt size (4): M6x1.0x14.5mm
CAUTION:- Be careful not to damage the fitting surfaces of the transmission case and the oil pan.
- Be careful not to deform the oil pan.
- Be reminded that bolts might be damaged if tightened too much since the gasket is cork-made and there is little tightening sense.
- Install a new gasket and the drain plug to the oil pan.
Tightening torque :
17.9~23.0Nm (1.79~2.30 kgf.m, 12.95~16.63 lb-ft)
- Refill the ATF. (refer to PROCEDURE OF ATF LEVEL ADJUSTING )
