Monitor Scantool Data

Check status
1. IGN "ON" & Engine "OFF"
2. Monitor the "ECM, Key and Smartra Status" Parameter on the Scantool.
  Specification: 'LEARNT'

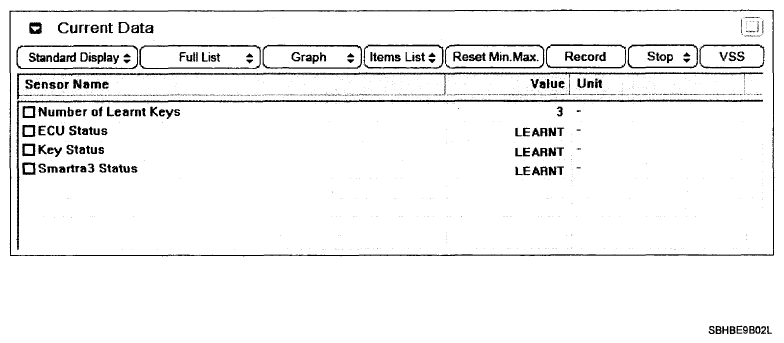

  Fig 1: Scan Tool Display - "ECM Status" Parameter
  Courtesy of HYUNDAI MOTOR CO.

  This data show that 3 keys have been taught, ECU has been learnt, the Key in key cylinder has been learnt and SMARTRA3 has been learnt
3. Has the KEY status learnt?
  YES
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA. And this DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to " 1 Check SMARTRA" procedure.
