Automatic Transmission: Components

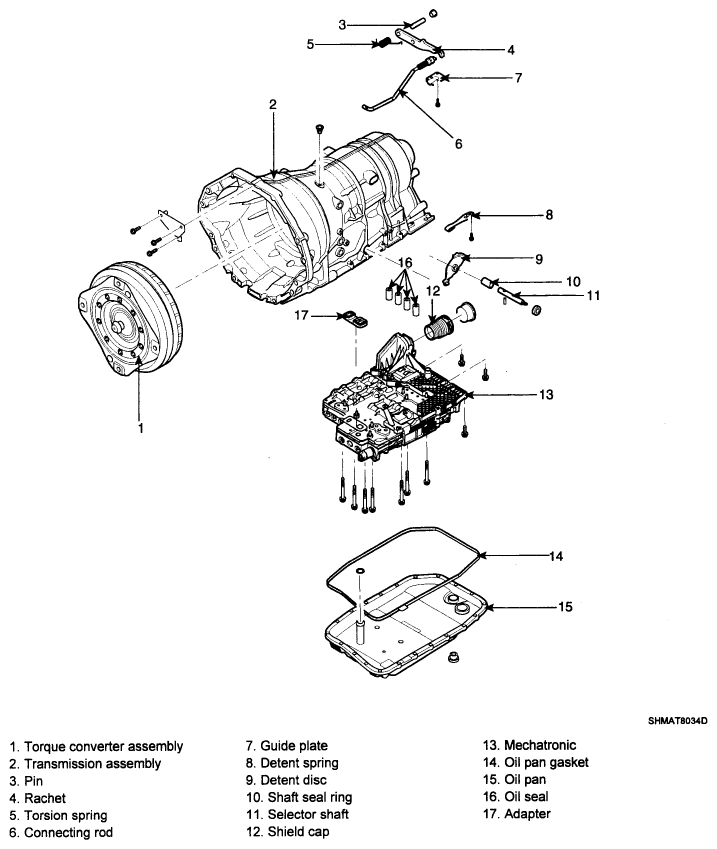

Fig 1: Identifying Automatic Transmission Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
