Variant Coding Procedure

On-Line type on Scantool
1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as follows:

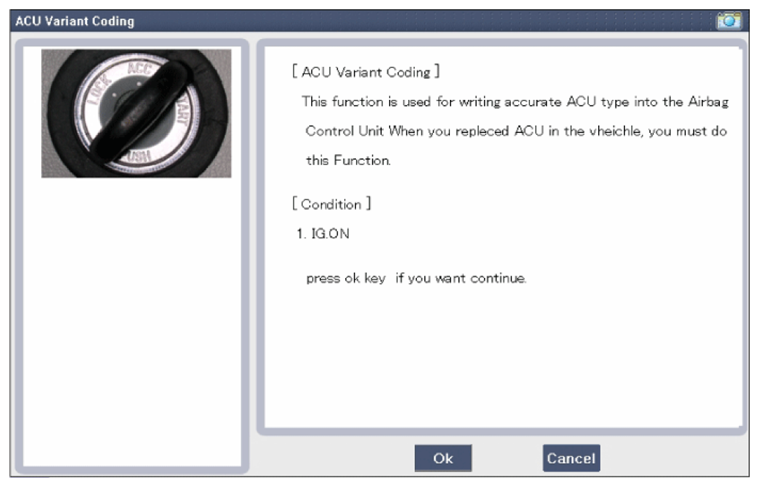

  1. Initial ACU Variant Coding screen

    Fig 1: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (1 Of 7)
    Courtesy of HYUNDAI MOTOR CO.

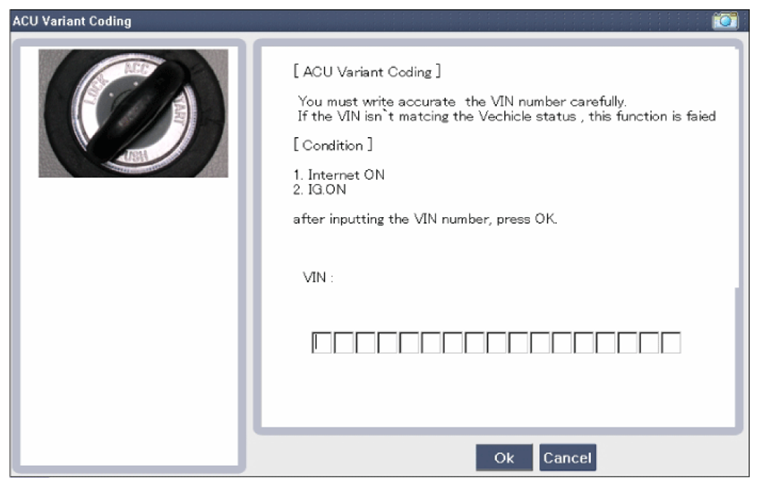

  2. VIN Code entering screen

    Fig 2: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (2 Of 7)
    Courtesy of HYUNDAI MOTOR CO.

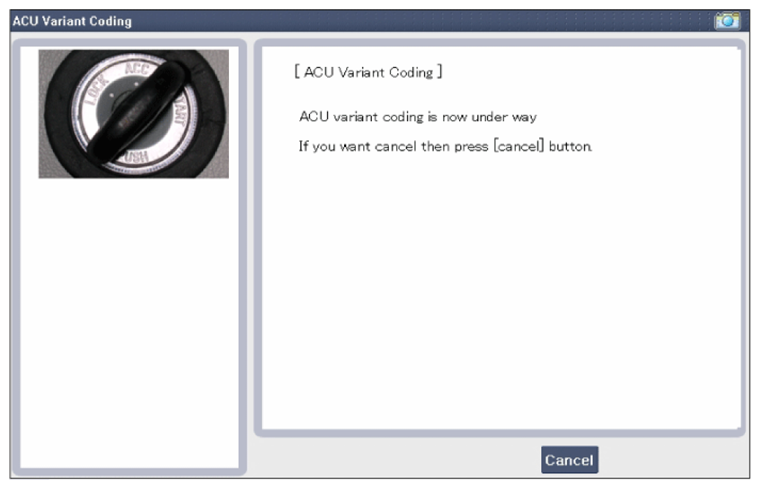

  3. Variant coding's proceeding screen-1

    Fig 3: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (3 Of 7)
    Courtesy of HYUNDAI MOTOR CO.

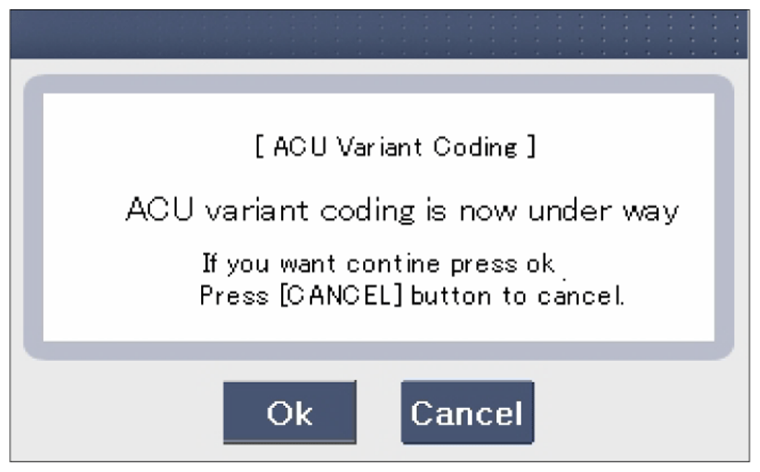

  4. Variant coding's proceeding screen-2

    Fig 4: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (4 Of 7)
    Courtesy of HYUNDAI MOTOR CO.

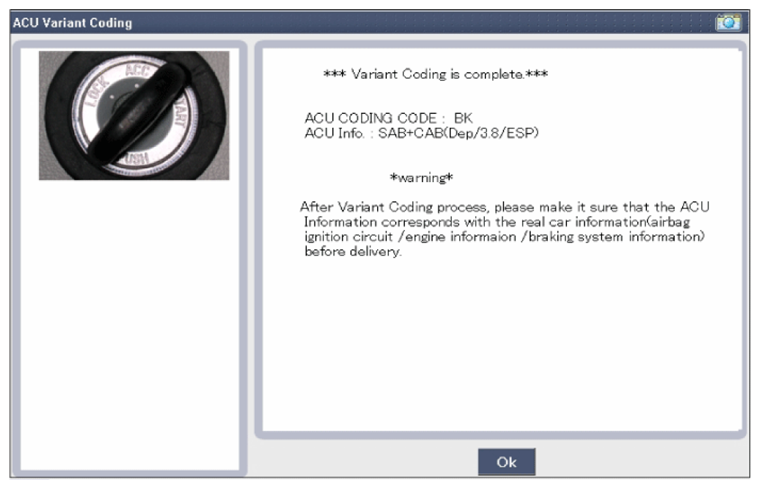

  5. Variant coding is completed

    Fig 5: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (5 Of 7)
    Courtesy of HYUNDAI MOTOR CO.
    NOTE:

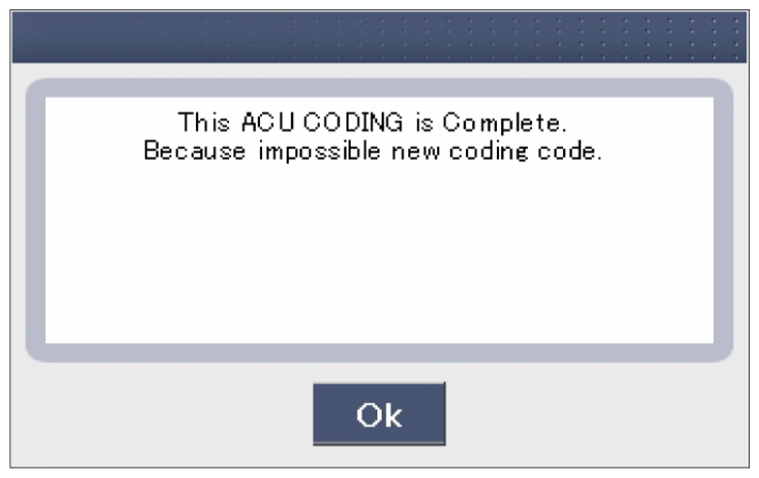

    Screen of Retrying the Variant coding after finishing variant coding

    Fig 6: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (6 Of 7)
    Courtesy of HYUNDAI MOTOR CO.

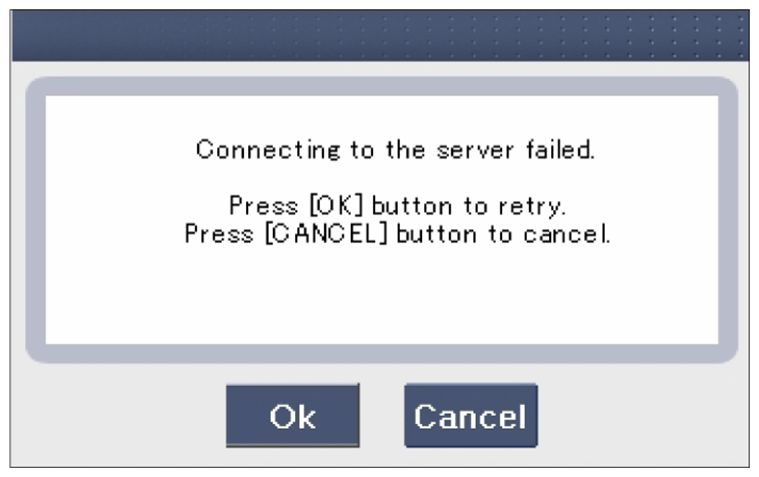

    Screen of communication failure

    Fig 7: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (7 Of 7)
    Courtesy of HYUNDAI MOTOR CO.
Off-line type on Scantool (This can be used when not connecting to Internet)

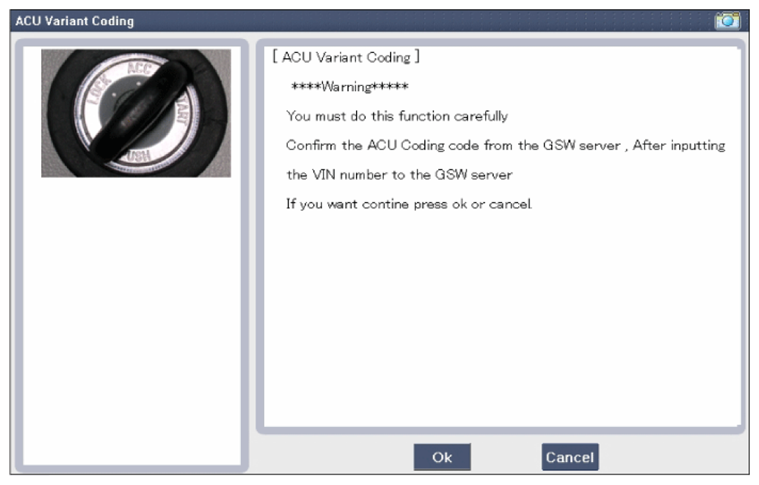

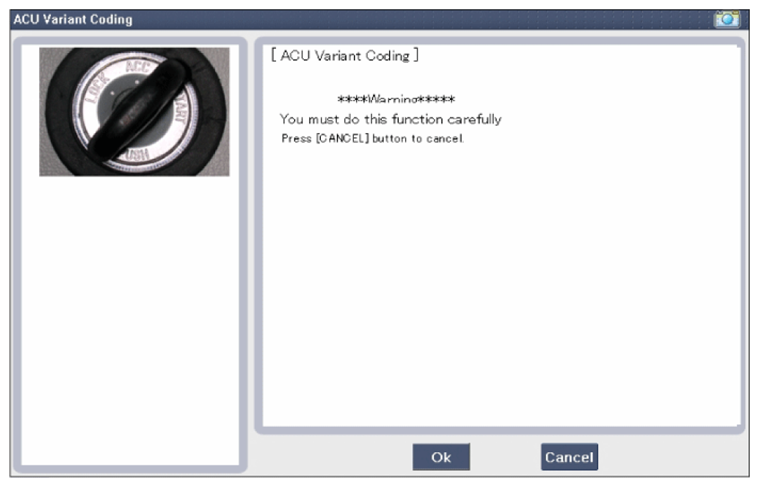

1. Initial ACU Variant Coding screen

  Fig 8: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (1 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

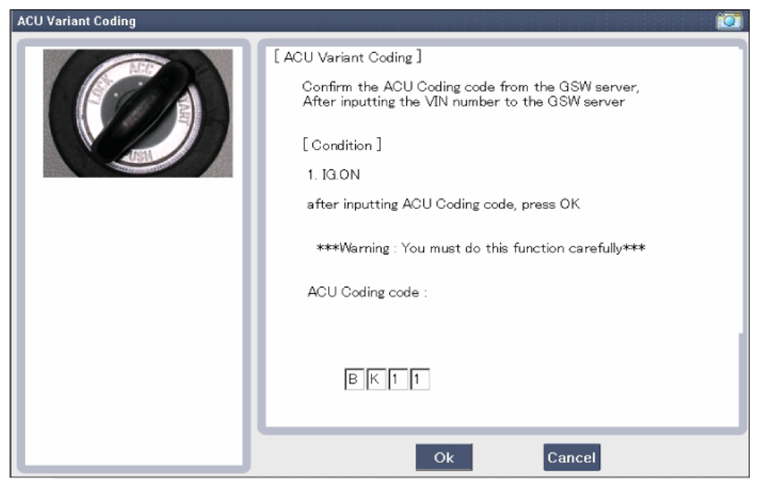

2. ACU CODING Code entering screen

  Fig 9: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (2 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
3. Screen of rechecking ACU CODING code's entering

  Fig 10: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (3 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

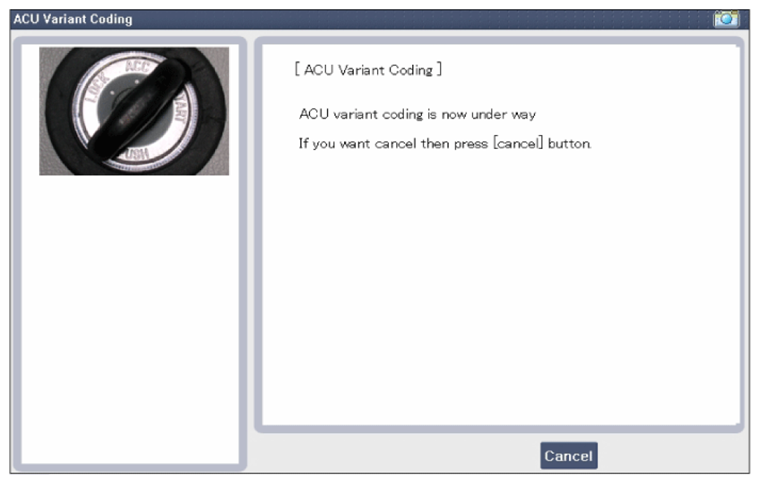

4. Variant coding's proceeding screen-1

  Fig 11: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (4 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
5. Variant coding's proceeding screen-2

  Fig 12: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (5 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
6. Variant coding is completed

  Fig 13: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (6 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
  NOTE:

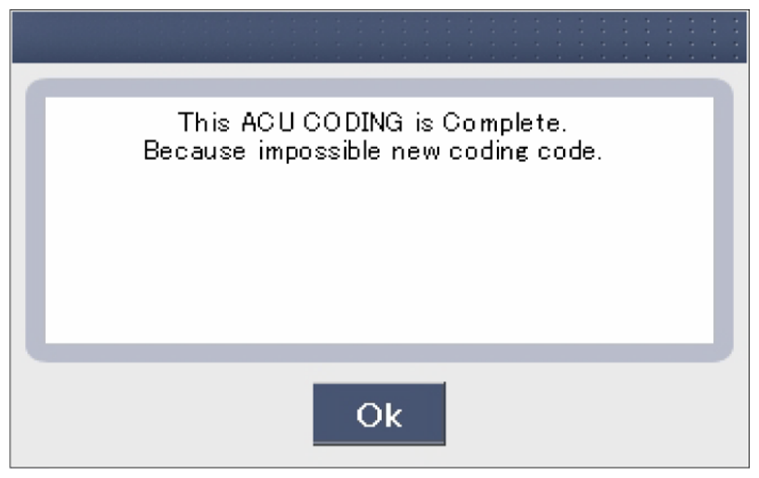

  1. Screen of Retrying the Variant coding after finishing variant coding

    Fig 14: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (7 Of 7)
    Courtesy of HYUNDAI MOTOR CO.
