Smart key unit

Inspection

Smart Key Unit
- Refer to the BE group - inspection / self diagnosis with scan tool.

Smart Key Switch
- Refer to the BE group - inspection / self diagnosis with scan tool.

Antenna
- Refer to the BE group - inspection / self diagnosis with scan tool.

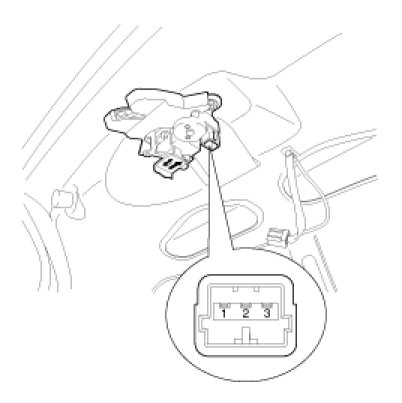

Trunk Lid Open Switch
1. Remove the trunk trim.

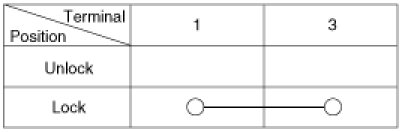

2. Check for continuity between the Trunk actuator terminals.




3. If continuity is not specified, inspect the switch
