Engine Control Module: Service and Repair

Removal

NOTE:
In the case of the vehicle equipped with immobilizer, perform "Key Teaching" procedure together .

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Remove the cover.

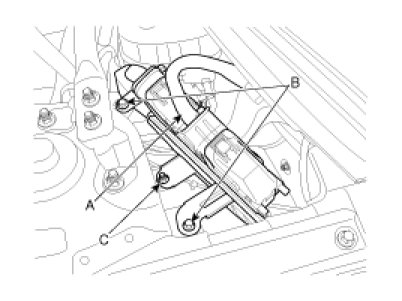

3. Disconnect the ECM connector (A).




4. Remove the ECM bracket installation bolts (B) and nut (C).
5. After removing the installation bolts, remove the ECM from the bracket.

Installation

NOTE:
In the case of the vehicle equipped with immobilizer, perform "Key Teaching" procedure together .

1. Installation is reverse of removal.

ECM installation bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lbf.ft)
