Smart Cruise Control Switch

Inspection

Measuring Resistance

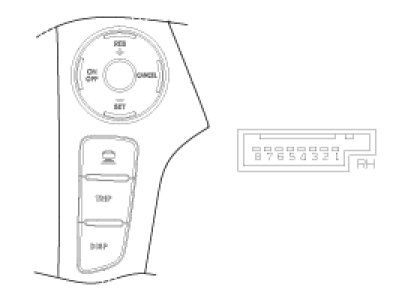

1. Disconnect the smart cruise control switch connector from the control switch.

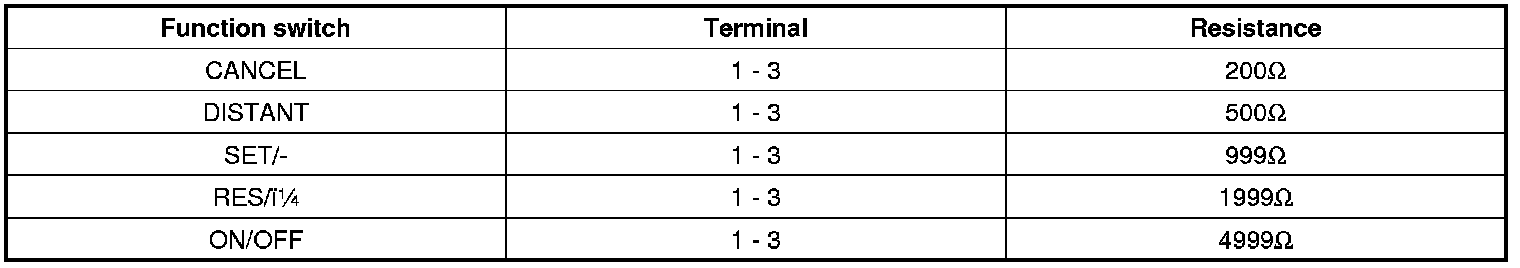

2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).





3. If not within specification, replace the switch.

Measuring Voltage
1. Connect the smart cruise control switch connector to the control switch.

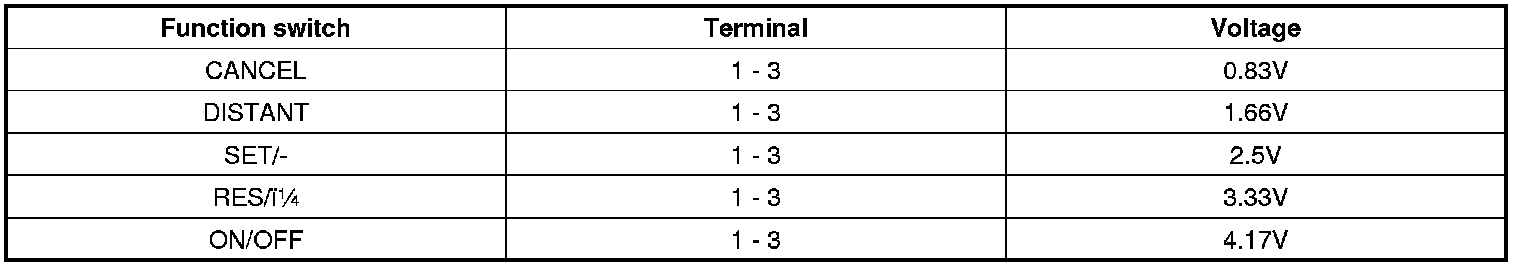

2. Measure voltage between terminals on the harness side connector when each function switch is ON (switch is depressed).





3. If not within specification, replace the switch.
