Fuel System - Specifications





Specifications

Sensors

Accelerator Position Sensor (APS)
- Type: Magnetic field sensitive sensor

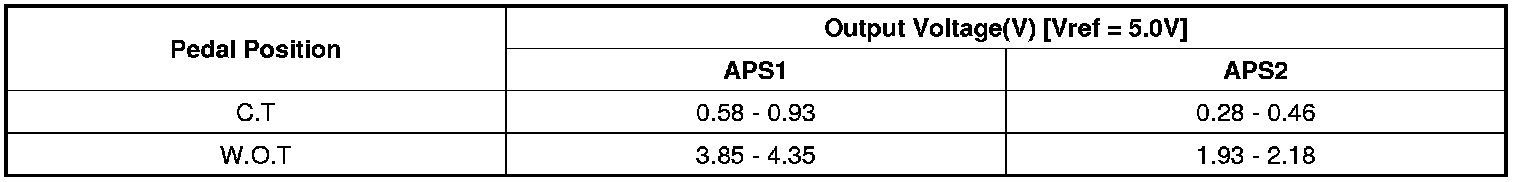

- Specification (When reference voltage = 5.0V)
