Cruise Control Switch: Service and Repair





Removal

1. Disconnect the battery (-) terminal.

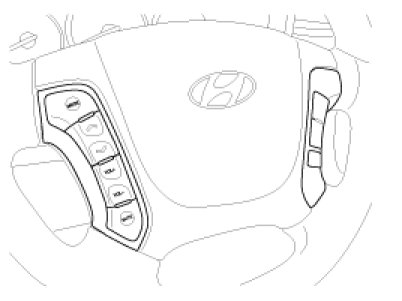

2. Remove the air-bag module from the steering wheel. ( Refer to RT group)

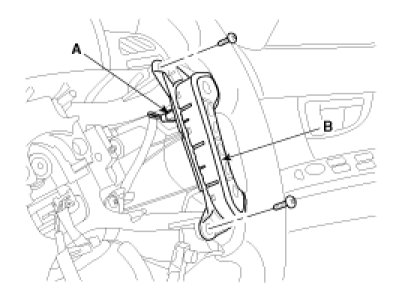

3. Loosen the 2 screws for remove the cruise control switch (B) after disconnecting the connector (A).
