Circuit Diagram

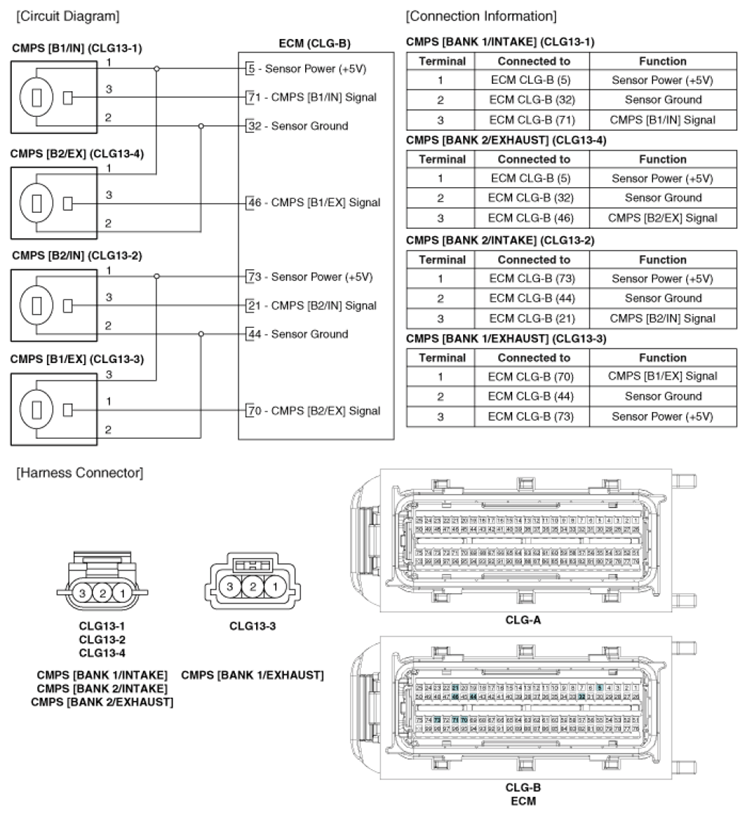

Fig 1: Camshaft Position Sensor Circuit Diagram
G06844893Courtesy of HYUNDAI MOTOR CO.
