Emission Control Systems
Specifications
Fuel Tank Pressure Sensor
(FTPS)
- Type : Piezo - Resistor type

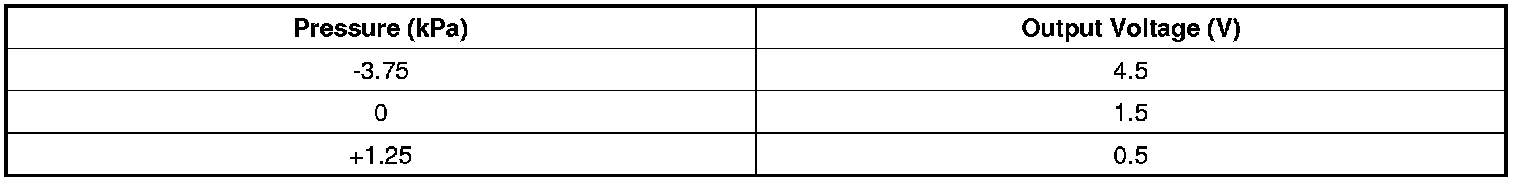

- Specification
