Main Relay (Computer/Fuel System): Locations

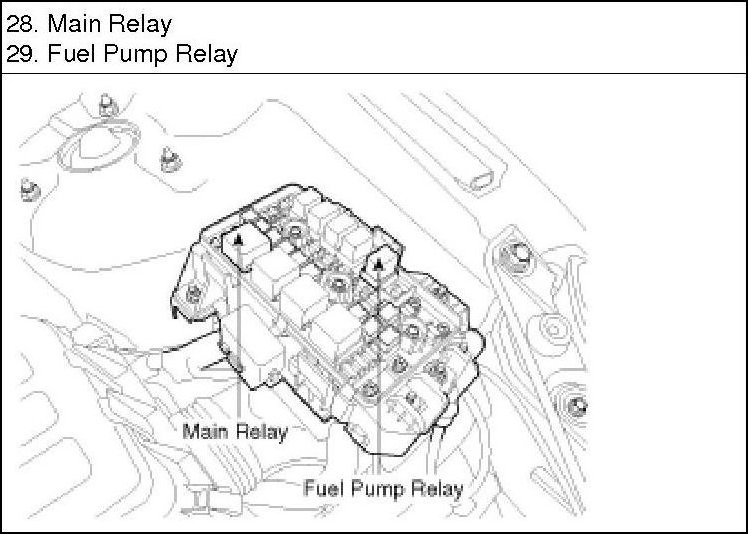

Component Location
E/R Junction Box

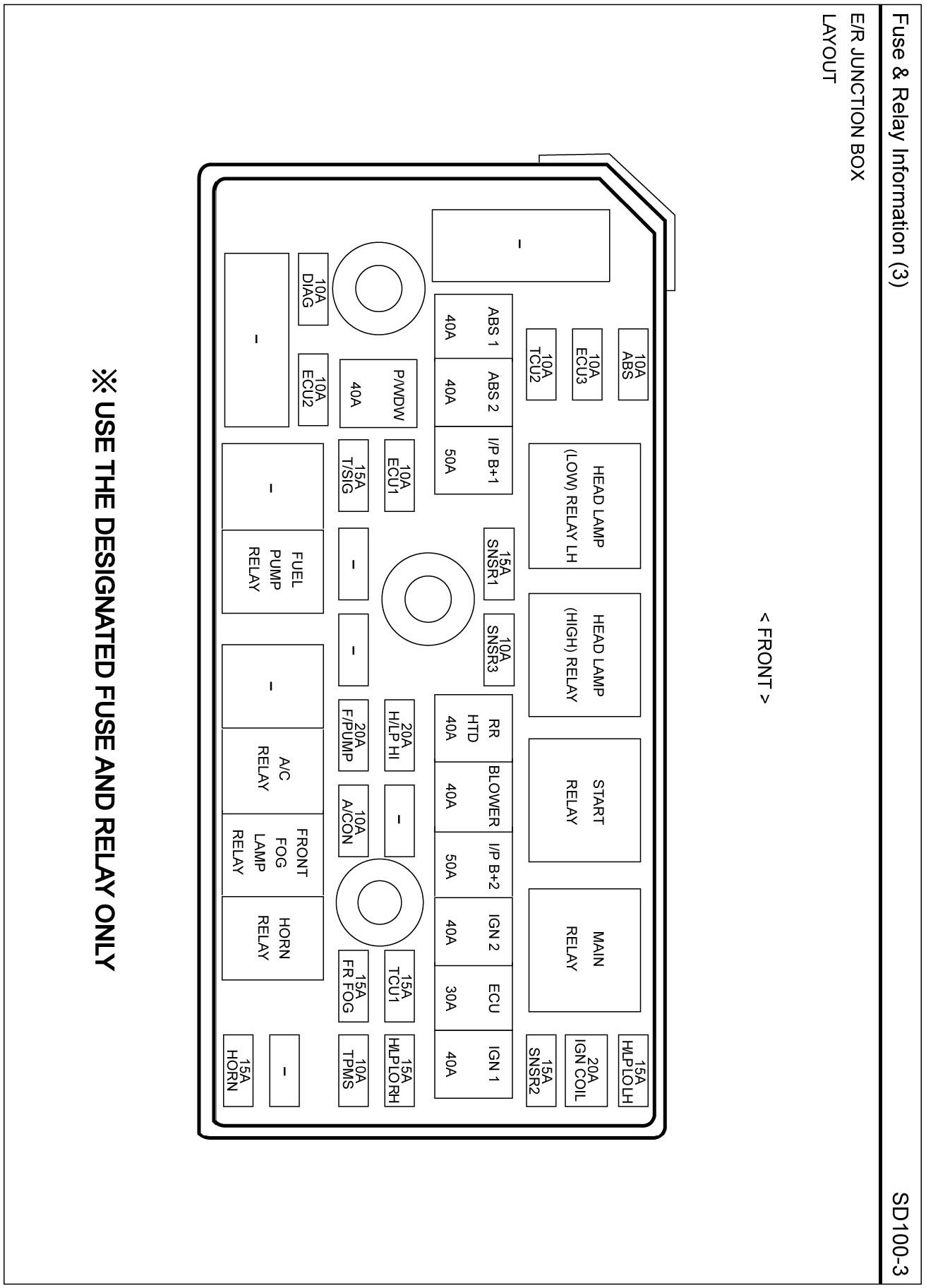

E/R Junction Box View:
Photo 12
