Component Inspection

Check Heater resistance

IG "OFF".
Disconnect HO2S (B1S2) connector.

Measure resistance between terminal 3 and 4 of HO2S (B1S2) connector. (Component Side)

Specification:

ITEM SPECIFICATION CHART

ITEM	Specification
Heater Resistance (Ω)	Approx. 9.0 (20 °C)

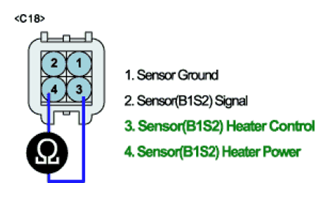

Fig 1: Measuring Resistance Between Terminal 3 And 4 Of HO2S (B1S2) Connector (Component Side)

G06881448

Courtesy of HYUNDAI MOTOR CO.

Is the measured resistance within specification?
YES
1. Substitute with a known - good ECM and check for proper operation.
  If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
1. Substitute with a known - good HO2S and check for proper operation.
  If the problem is corrected, replace HO2S and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
