Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver door.

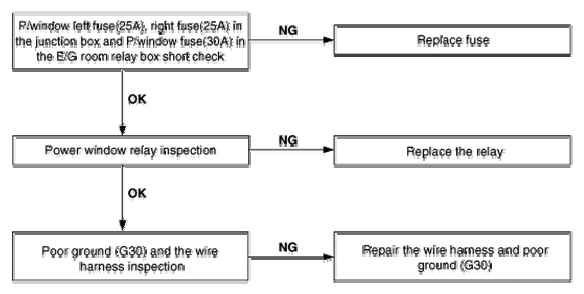

    Fig 1: Troubleshooting Chart - No Windows Operate From Driver Door Main Switch
    G06882643Courtesy of HYUNDAI MOTOR CO.
  2. Driver side window does not operate.

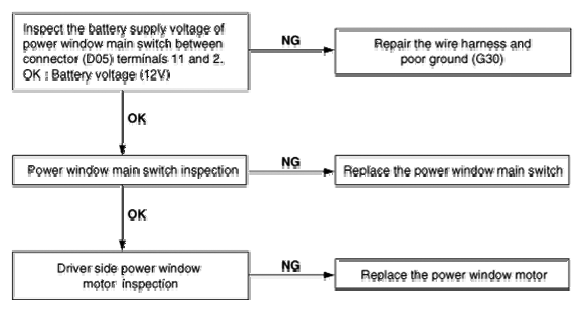

    Fig 2: Troubleshooting Chart - Driver Side Window Does Not Operate
    G06882644Courtesy of HYUNDAI MOTOR CO.
  3. Assist side window does not operate.
    Fig 3: Troubleshooting Chart - Driver Side Window Does Not Operate
    G06882645Courtesy of HYUNDAI MOTOR CO.
