Components and Components Location: Components

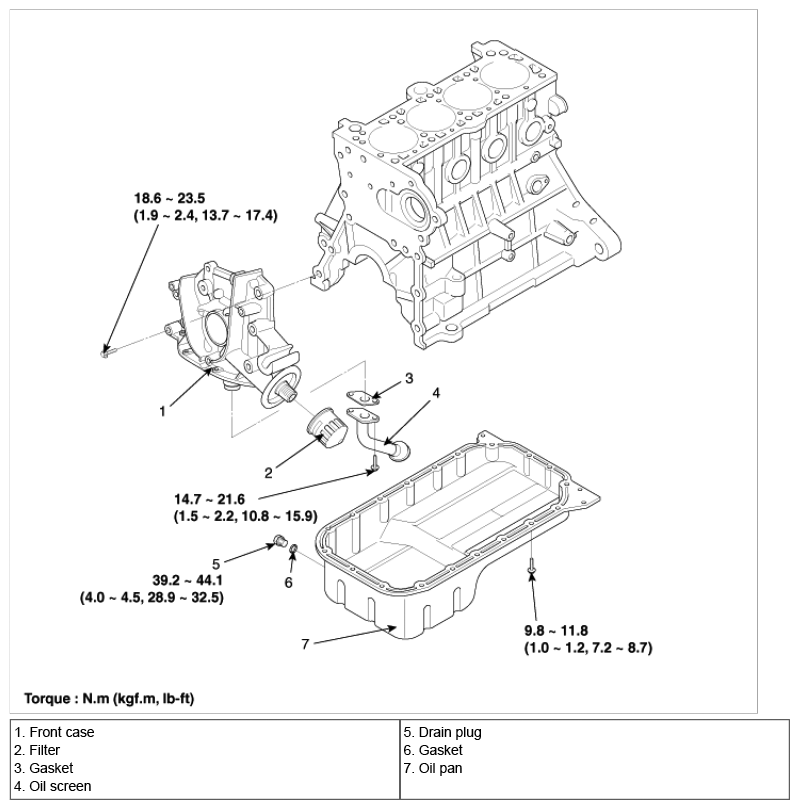

Fig 1: Engine Lubrication System Component Identification With Torque Specifications (1 Of 2)
G06879216Courtesy of HYUNDAI MOTOR CO.

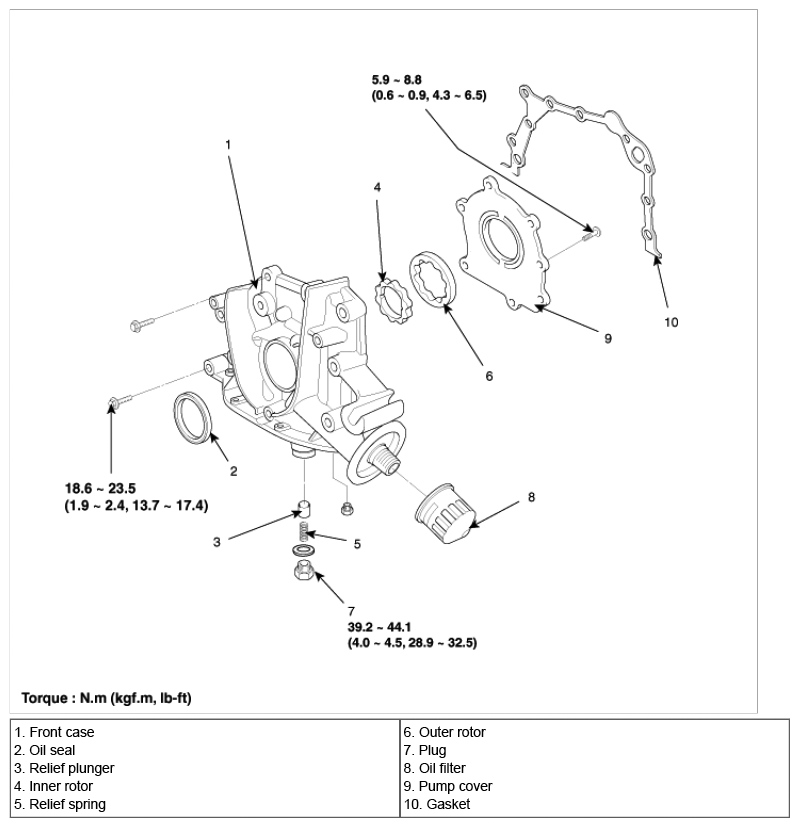

Fig 2: Engine Lubrication System Component Identification With Torque Specifications (2 Of 2)
G06879217Courtesy of HYUNDAI MOTOR CO.
