Components and Components Location: Components

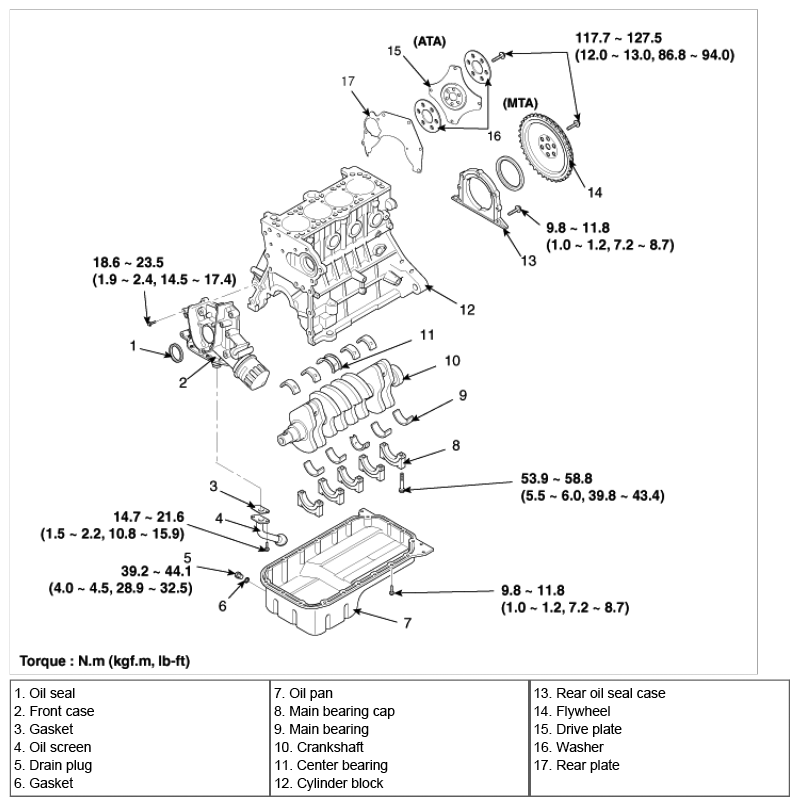

Fig 1: Cylinder Block Replacement Components (1 Of 2) With Torque Specifications
G06879141Courtesy of HYUNDAI MOTOR CO.

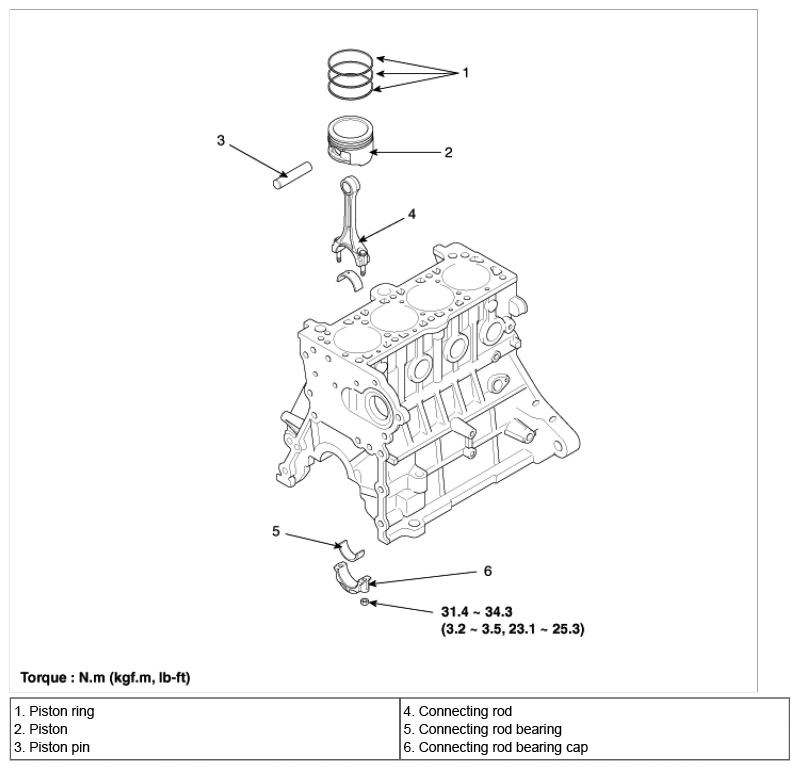

Fig 2: Cylinder Block Replacement Components (2 Of 2) With Torque Specifications
G06879142Courtesy of HYUNDAI MOTOR CO.
