Engine Control System Diagnosis (1 Of 2)
>>
DTC P0123: Throttle/Pedal Position Sensor/Switch A Circuit High Input
>>
General Information
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

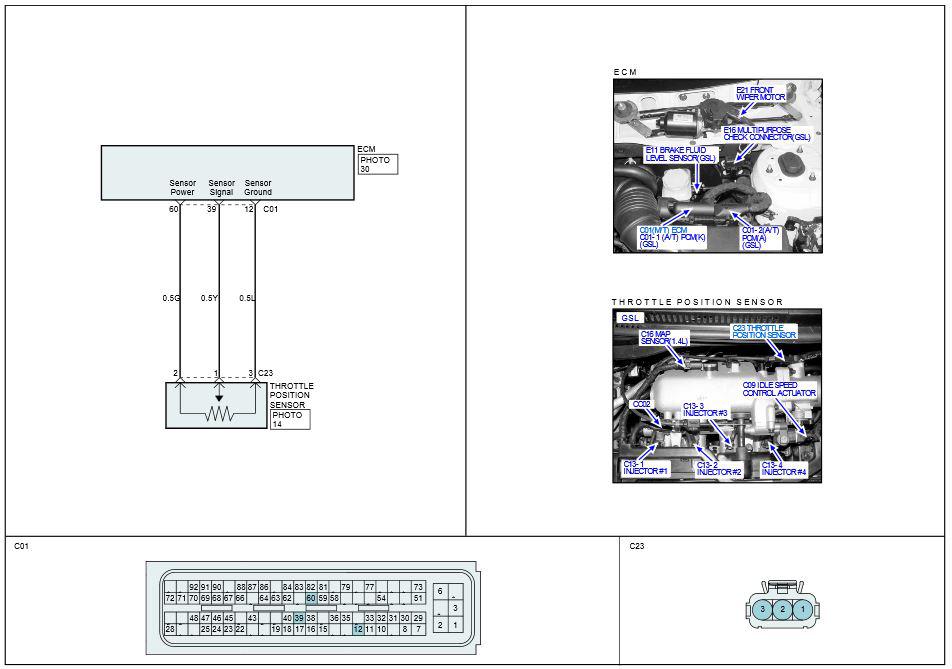

Fig 1: Throttle Position Sensor - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
