Component Inspection

Check TPS resistance

Key "OFF".
Disconnect TPS harness connector.

Measure the resistance between terminal 2 and 3 of TPS component side connector.

Specification:

ITEM SPECIFICATION CHART

ITEM	Specification
TPS Resistance (kΩ)	2 kΩ ± 20% (20 °C)

Fig 1: Measuring Resistance Between Terminal 2 And 3 Of TPS Component Side Connector

G06881352

Courtesy of HYUNDAI MOTOR CO.

Is the measured resistance within specification?
YES
1. Go to " 2 Check ECM" procedure.
NO
1. Substitute with a known-good TPS and check for proper operation.
  If the problem is corrected, replace TPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Check ECM
1. Key "OFF".
2. Connect the scan tool and select "Simulation SCAN" in the menu.
3. Connect channel A of scan tool with terminal 1 of TPS harness connector, and key "ON".
4. Simulate voltage at signal line.

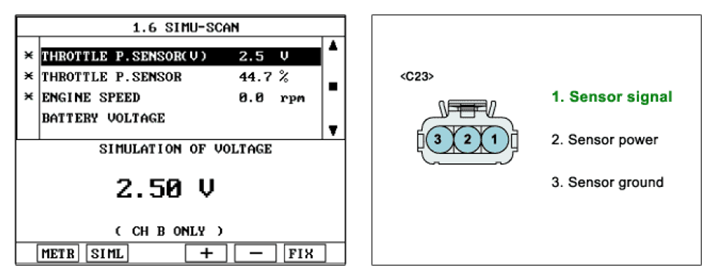

  Fig 2: Screen Display - Throttle Position Sensor Voltage
  Courtesy of HYUNDAI MOTOR CO.
5. Does the signal output of TPS change according to simulation voltage?
  YES
  1. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  1. Substitute with a known - good ECM and check for proper operation.
    If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
