DTC P0141: O2 Sensor Heater Circuit (Sensor2)
>>
General Information
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

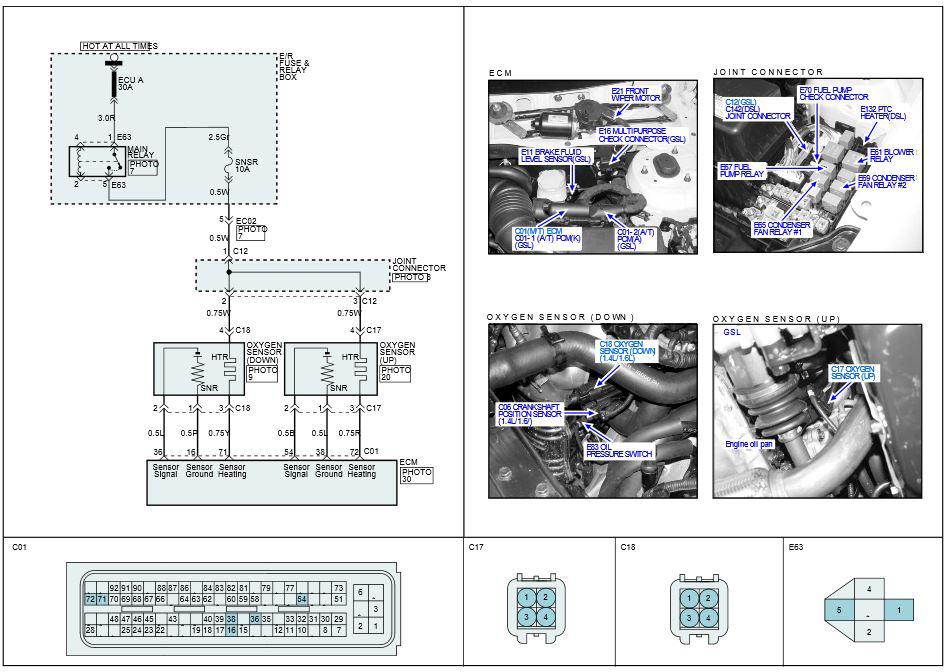

Fig 1: Oxygen Sensor - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
