Signal Waveform

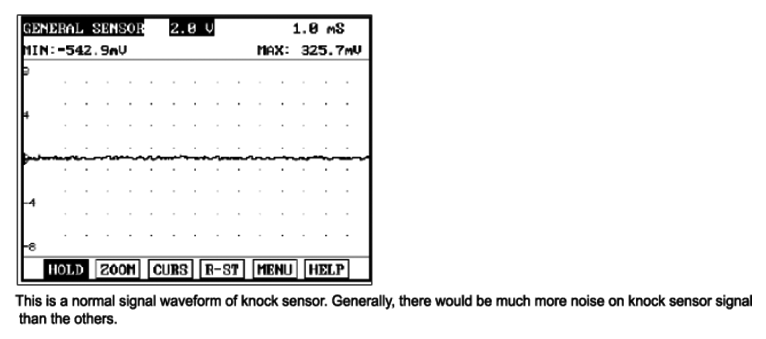

Fig 1: Knock Sensor Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

This is a normal signal waveform of knock sensor. Generally, there would be much more noise on knock sensor signal than the others.
