Repair procedures (M5CF1): Disassembly

  1. Disassemble the shift lever knob (A) from the shift lever shaft (B).
    Fig 1: Identifying Shift Lever Knob And Shift Lever Shaft
    G06879602Courtesy of HYUNDAI MOTOR CO.
  2. Disassemble the push nut (A) from the shift lever bracket. And then disassemble the shift lever shaft and select lever.

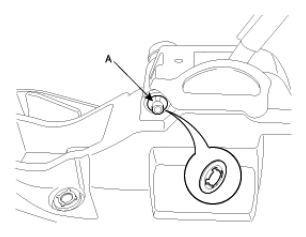

    Fig 2: Identifying Shift Lever Bracket Push Nut
    G06879603Courtesy of HYUNDAI MOTOR CO.
