Repair procedures (M5CF1): Installation

Install the shift cable and select cable after locating the shift lever and select lever at the neutral position.
NOTE: When operating lever of body side, check secure operation of lever of transaxle side after assembly.
Install the snap pins (2EA) of transaxle side.

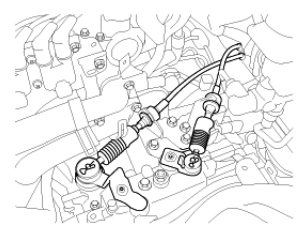

Fig 1: Identifying Shift Cable And Select Cable
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever assembly.
Tightening torque:

9 - 14 Nm (90 - 140 kgf.cm, 6 - 9.5 lb.ft)

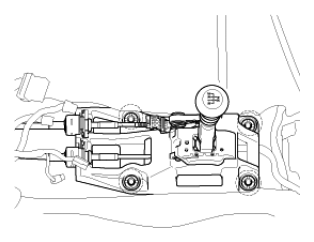

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Install the shift cable and select cable to the shift lever side.
NOTE: Adjust the cable length with select cable adjuster (A) in "N" position before installing the center console.

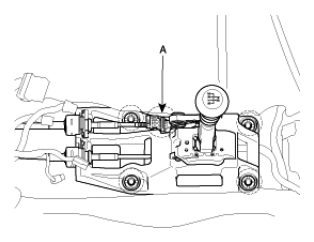

Fig 3: Identifying Select Cable Adjuster
Courtesy of HYUNDAI MOTOR CO.
Install the center console. (Refer to CONSOLE .)
