Repair procedures (M5CF1): Removal

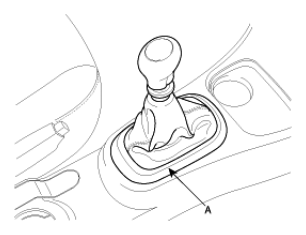

Remove the center console (A). (Refer to CONSOLE .)

Fig 1: Identifying Center Console
Courtesy of HYUNDAI MOTOR CO.
Remove the cup holder (A) and the parking brake cover (B).

Fig 2: Identifying Cup Holder And Parking Brake Cover
Courtesy of HYUNDAI MOTOR CO.

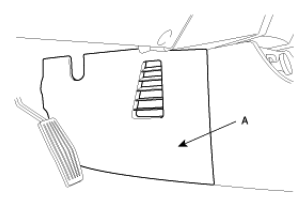

Remove the center console side cover (A).

Fig 3: Identifying Center Console Side Cover
Courtesy of HYUNDAI MOTOR CO.
Remove rear mounting bolt (A) of the center console.

Fig 4: Identifying Center Console Rear Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

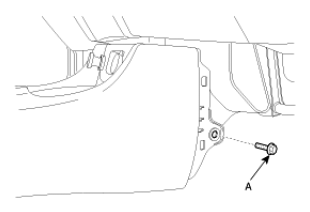

Remove front mounting bolt (A) of the center console and remove the center console.

Fig 5: Identifying Center Console Front Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

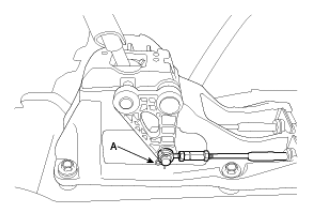

Remove the select cable snap pin (A).

Fig 6: Identifying Select Cable Snap Pin
Courtesy of HYUNDAI MOTOR CO.

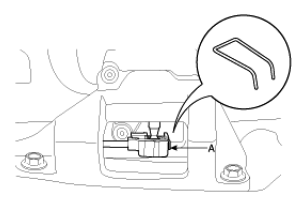

Remove the shift cable clip (A).

Fig 7: Identifying Shift Cable Clip
Courtesy of HYUNDAI MOTOR CO.

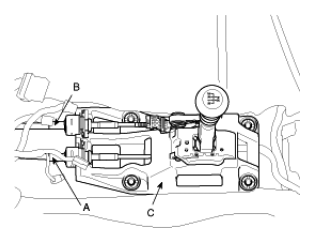

Remove the shift cable (A) and select cable (B).
Remove the shift lever assembly (C).

Fig 8: Identifying Shift Lever Assembly With Shift Cable And Select Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and nuts (B).

Fig 9: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.

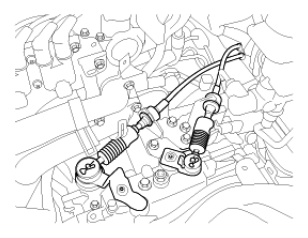

Remove the snap pins (2EA). (Transaxle side).

Fig 10: Identifying Shift Cable And Select Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the shift cable and select cable.
