Components (2)

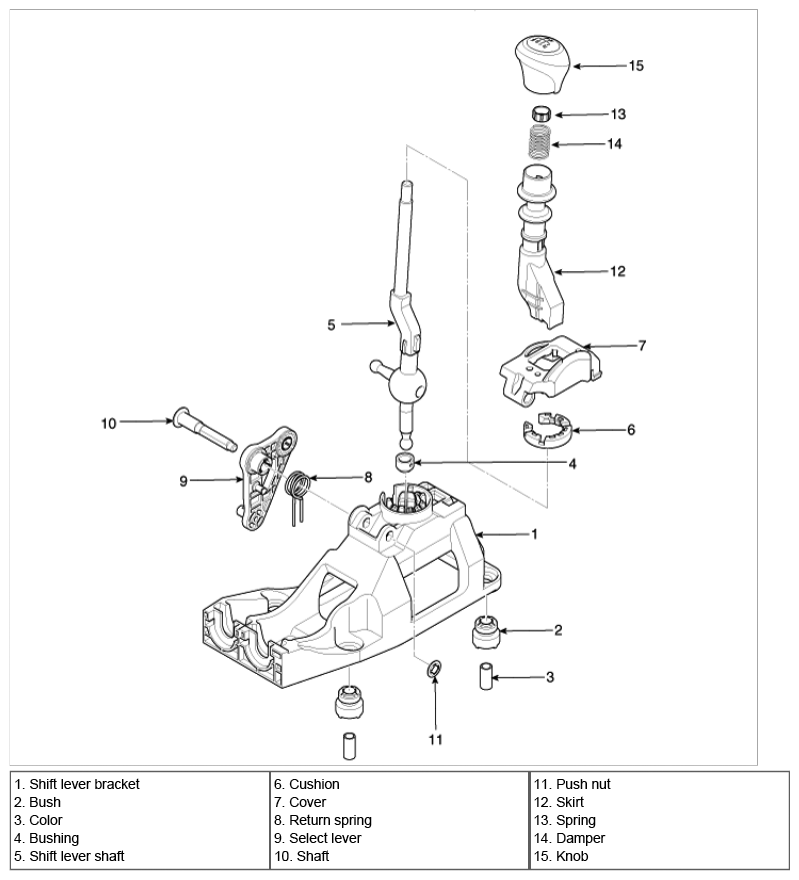

Fig 1: Identifying Manual Transaxle Shift Control System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
