Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.

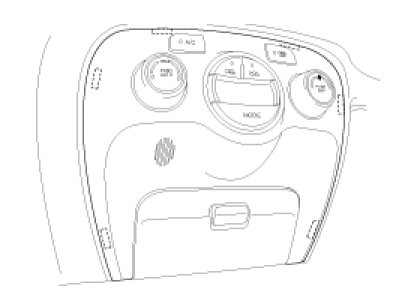

2. Remove the center facia lower panel by pulling it using a screw driver after disconnecting a clips. Avoid damaging retaining clips.

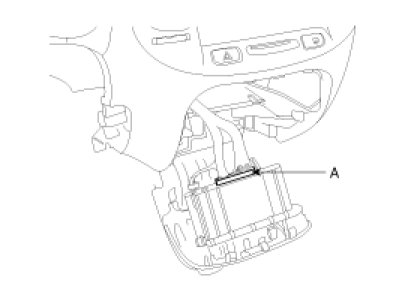

3. Disconnect the connectors (A) from the center facia.

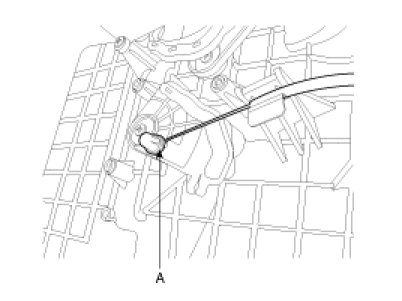

4. Remove the heater & A/C controller temperature control cable (A).

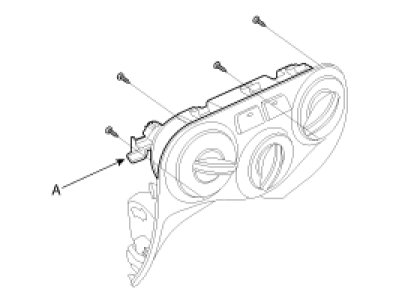

5. Remove the heater & A/C controller (A) after loosening 4 screws.




6. Installation is the reverse order of removal.
