Engine Control System

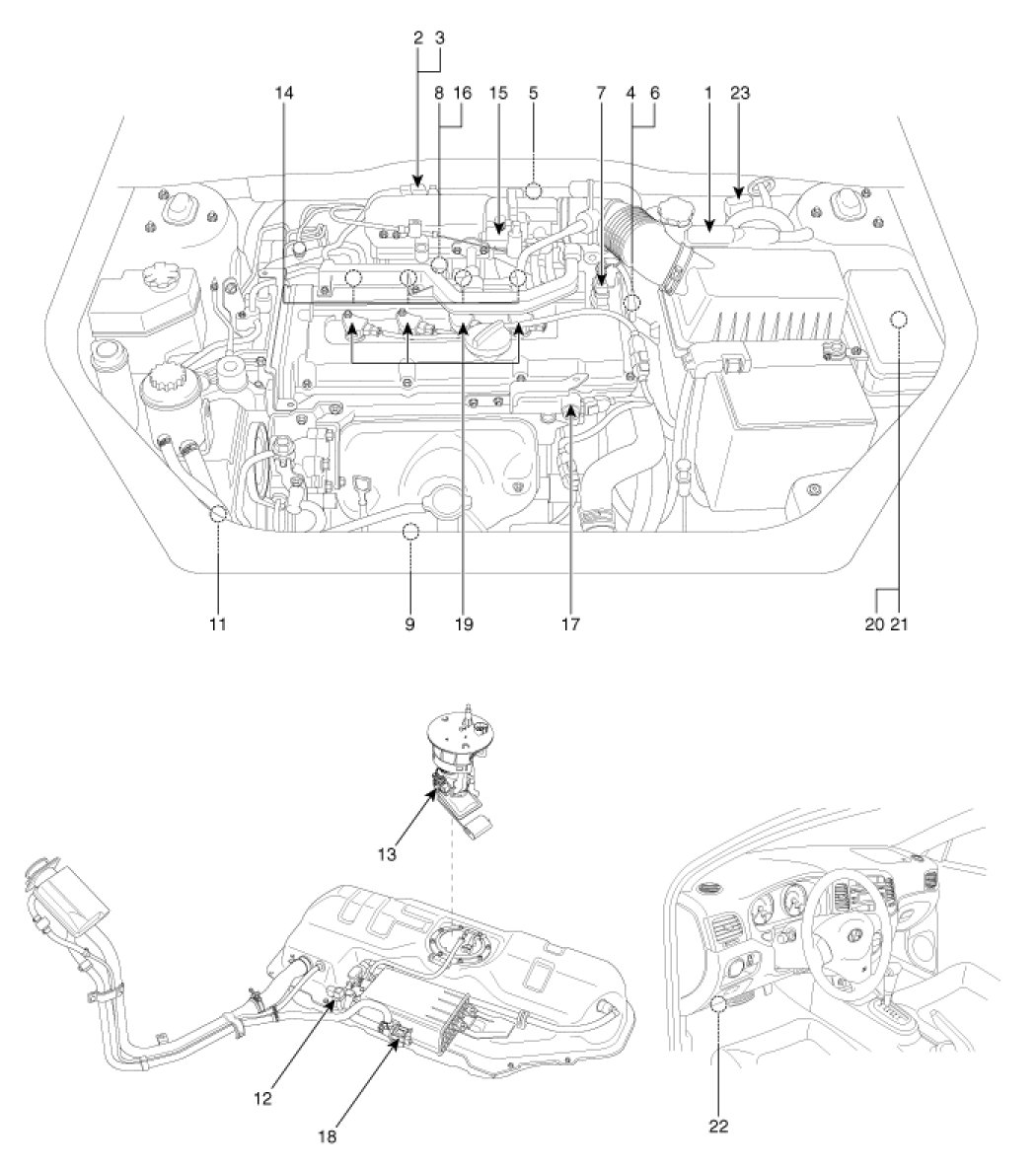

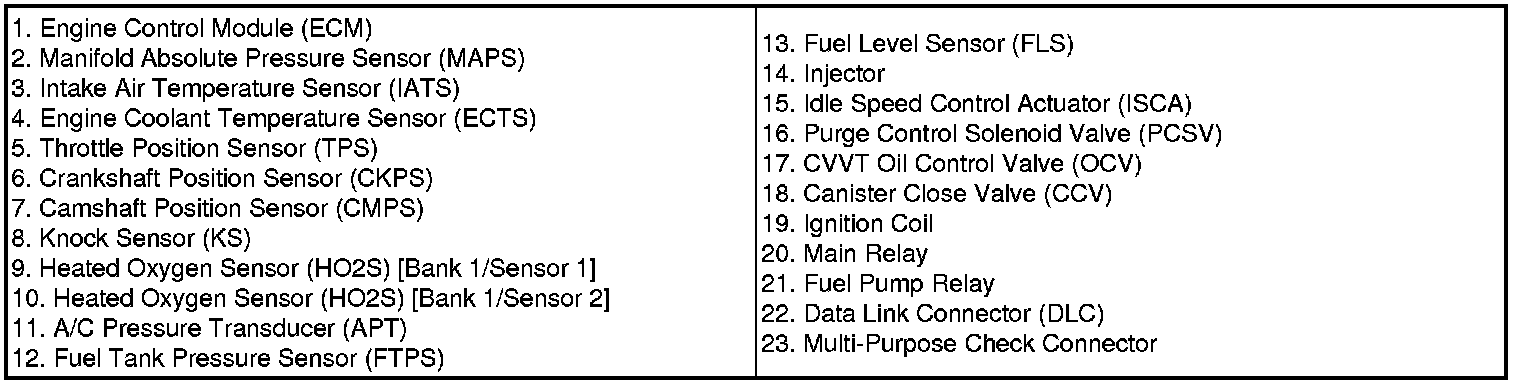

Components Location

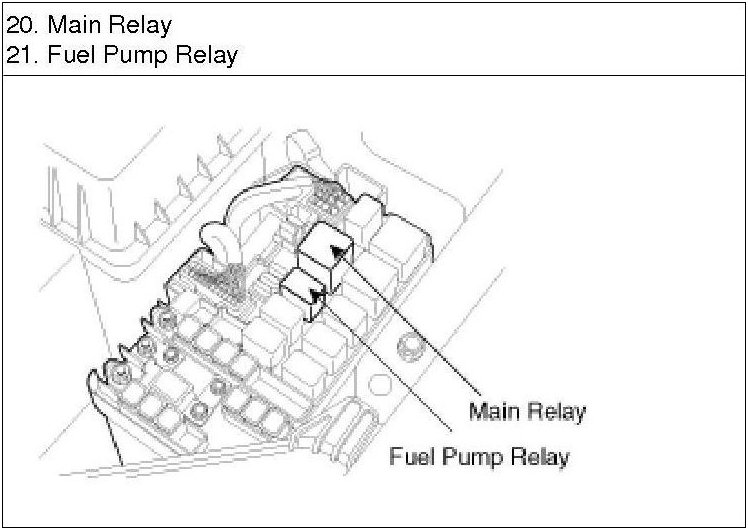

E/R Fuse & Relay Box
E/R Fuse & Relay Box View:
E/R Fuse & Relay Box Circuit Details:

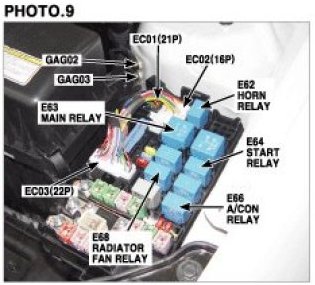

Photo 9
