Components (1)

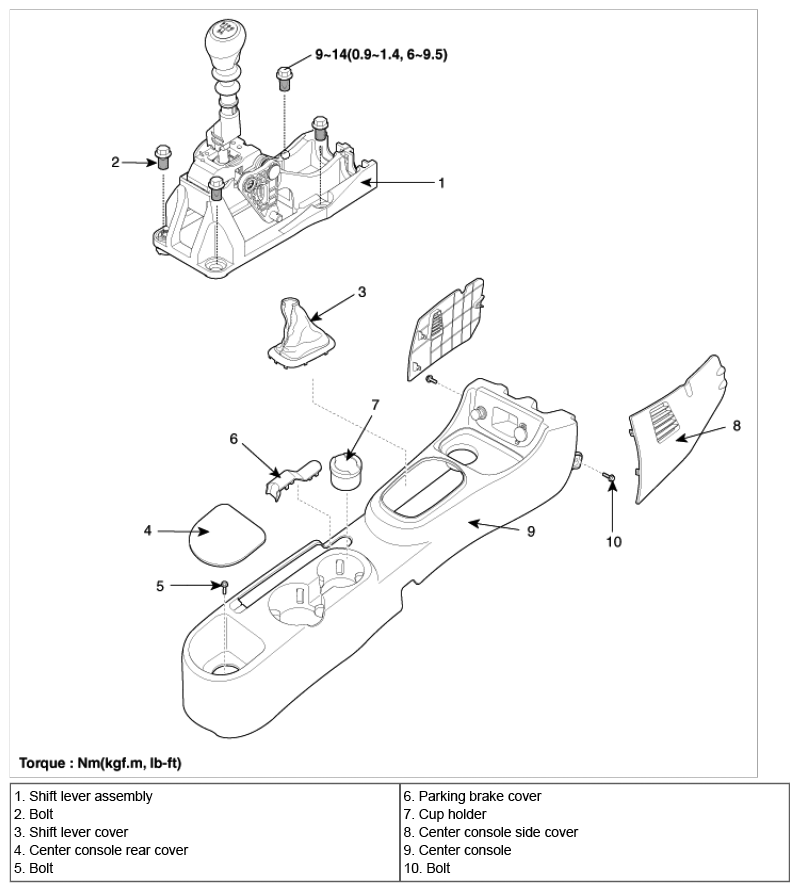

Fig 1: Manual Transaxle Shift Control System Replacement Components With Torque Specifications (1 Of 2)
G06879587Courtesy of HYUNDAI MOTOR CO.
