Signal Waveform & Data

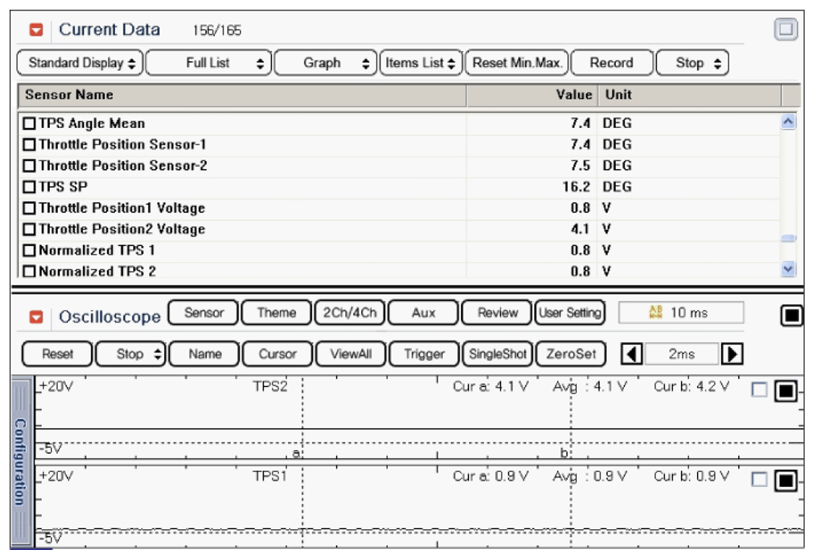

Fig 1: Normal Data Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
G07251524Courtesy of HYUNDAI MOTOR CO.

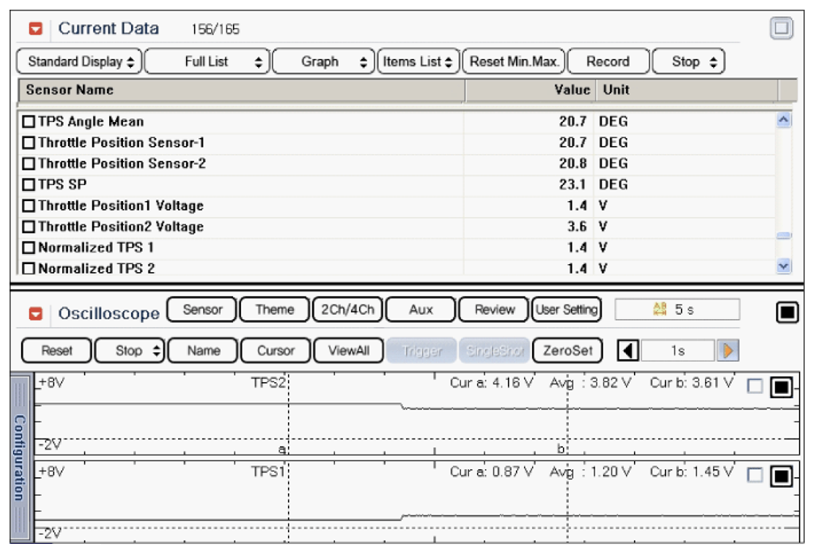

Fig 2: Normal Data Of TPS1 & TPS2 With Accel Pedal Depressed Under IG ON Condition
G07251525Courtesy of HYUNDAI MOTOR CO.

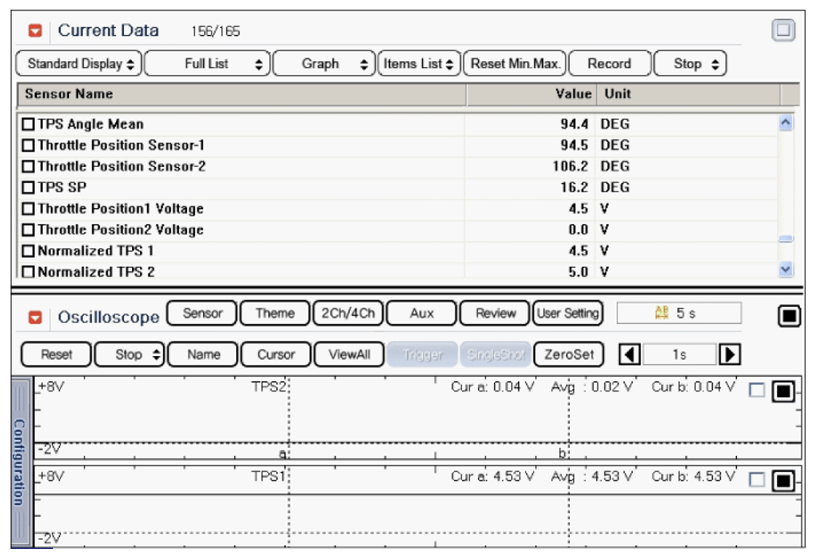

Fig 3: Normal Data Of TPS1 & TPS2 Under Open Condition
G07251526Courtesy of HYUNDAI MOTOR CO.
