Repair Procedures: Removal

  1. Remove the floor console (A).

    (Refer to "CONSOLE .

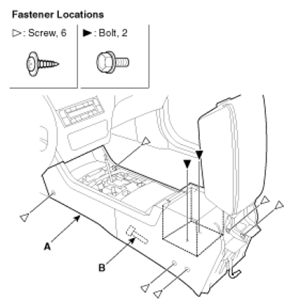

    Fig 1: Identifying Floor Console
    G07250044Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the jack assembly connector from the floor console.
  3. Remove the Multi Media Jack (A) from the floor console.
    Fig 2: Identifying Multi Media Jack
    G07250045Courtesy of HYUNDAI MOTOR CO.
