Repair Procedures: Replacement: [CANADA]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). Avoid damaging retaining clip. (Refer to the CRASH PAD .

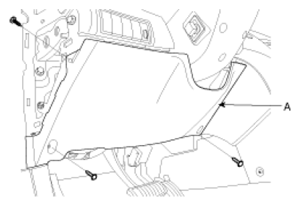

    Fig 1: Identifying Crash Pad Lower Panel
    G07250470Courtesy of HYUNDAI MOTOR CO.
  3. Remove ICM relay connector and 2 nuts.
    Fig 2: Identifying Body Control Module
    G07250471Courtesy of HYUNDAI MOTOR CO.
  4. Remove the body control module (A) and tilt & telescope unit after loosening 2 nuts and disconnecting connector.
    Fig 3: Identifying Immobilizer Unit
    G07250472Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the immobilizer unit connector and then remove the immobilizer unit(A) after loosening a shear bolt or removing the unit from the mounting bracket (B) using a flat-up screwdriver.
    Fig 4: Identifying Mounting Bracket And Immobilizer Unit
    G07250473Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal procedure.
