Repair Procedures: Installation

  1. Install the radiator fan (A) to the radiator.
    Fig 1: Identifying Radiator Fan
    G06804843Courtesy of HYUNDAI MOTOR CO.
  2. Install the radiator (A).
    Fig 2: Identifying Radiator
    G06804844Courtesy of HYUNDAI MOTOR CO.
  3. Install the radiator bracket (A).
    Fig 3: Identifying Radiator Bracket
    G06804845Courtesy of HYUNDAI MOTOR CO.
  4. Reconnect the radiator fan connector (A).
    Fig 4: Identifying Radiator Fan Connector
    G06804846Courtesy of HYUNDAI MOTOR CO.
  5. Connect transaxle oil cooler hoses. (Refer to REPAIR PROCEDURES

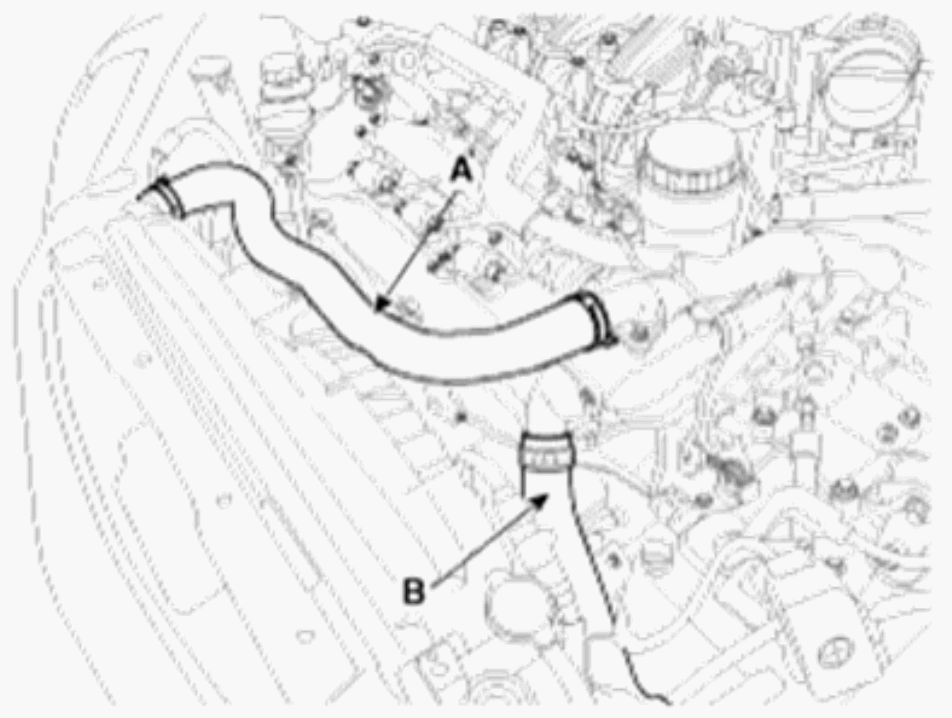

  6. Connect the radiator upper hose (A) and the lower hose (B).
    Fig 5: Identifying Radiator Upper And Lower Hoses
    G00510020Courtesy of HYUNDAI MOTOR CO.
  7. Install the air duct (A).
    Fig 6: Identifying Air Duct
    G06804848Courtesy of HYUNDAI MOTOR CO.
  8. Fill with engine coolant.
  9. Start engine and check for leaks.
  10. Recheck engine coolant level.
