Components and Components Location: Components

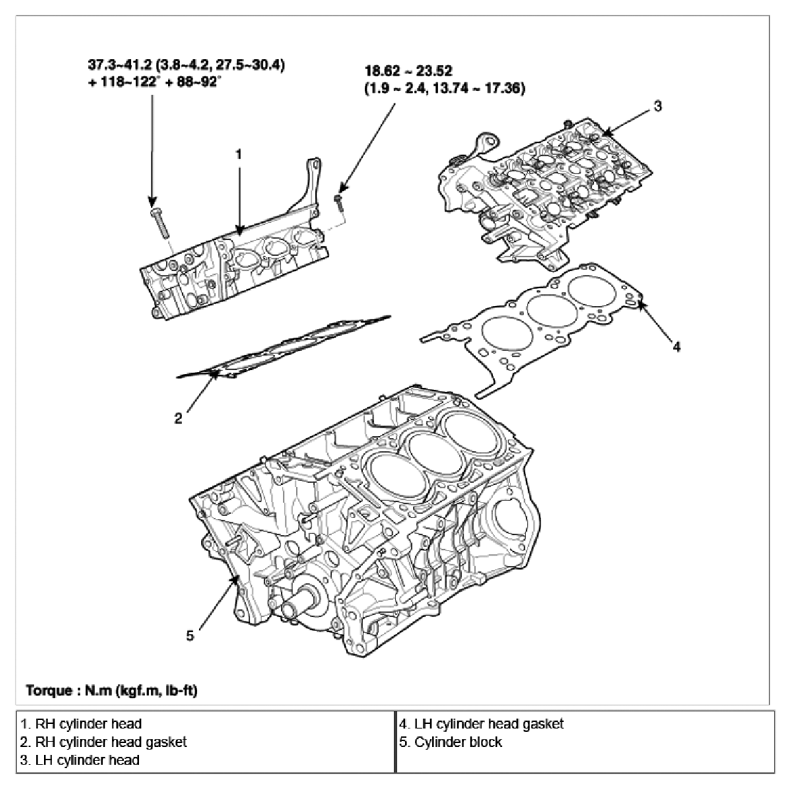

Fig 1: Cylinder Head Assembly Replacement Components (1 Of 2) With Torque Specifications
G06801527Courtesy of HYUNDAI MOTOR CO.
Fig 2: Cylinder Head Assembly Replacement Components (2 Of 2) With Torque Specifications
G06801528Courtesy of HYUNDAI MOTOR CO.
