Components and Components Location: Components

Fig 1: Timing Chain Replacement Components With Torque Specifications (1 Of 2)
G06801395Courtesy of HYUNDAI MOTOR CO.

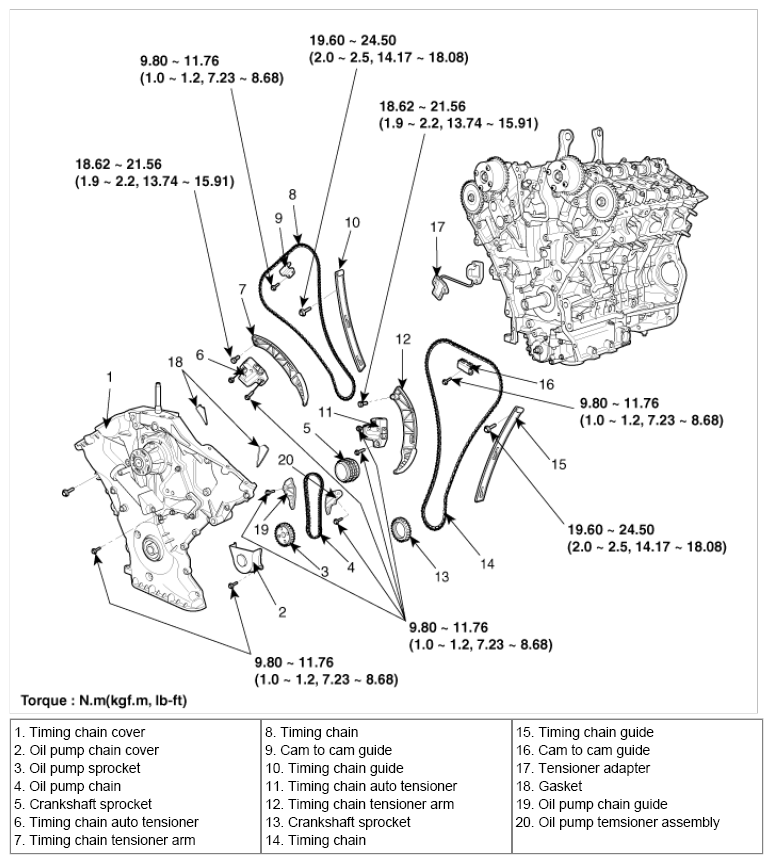

Fig 2: Timing Chain Replacement Components With Torque Specifications (2 Of 2)
G06801396Courtesy of HYUNDAI MOTOR CO.
