Circuit Diagram

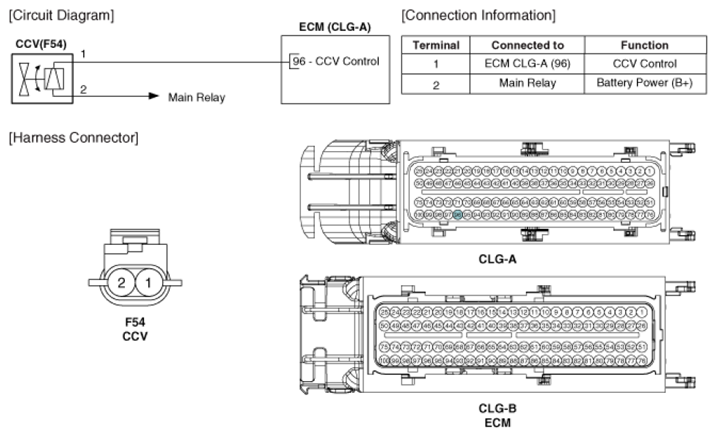

Fig 1: Canister Close Valve (CCV) Circuit Diagram
G07249719Courtesy of HYUNDAI MOTOR CO.
