Signal Waveform & Data

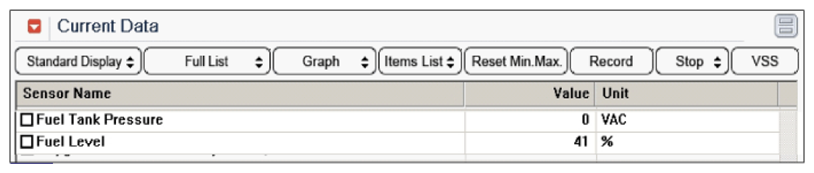

Fig 1: Normal Data Of Fuel Level At Idle (41%)
G07252005Courtesy of HYUNDAI MOTOR CO.
Fig 2: Abnormal Data Of Fuel Level When Fuel Level Sensor Circuit Open Or Short
G07252006Courtesy of HYUNDAI MOTOR CO.
