DTC P0552: Power Steering Pressure Sensor/Switch Circuit Low input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

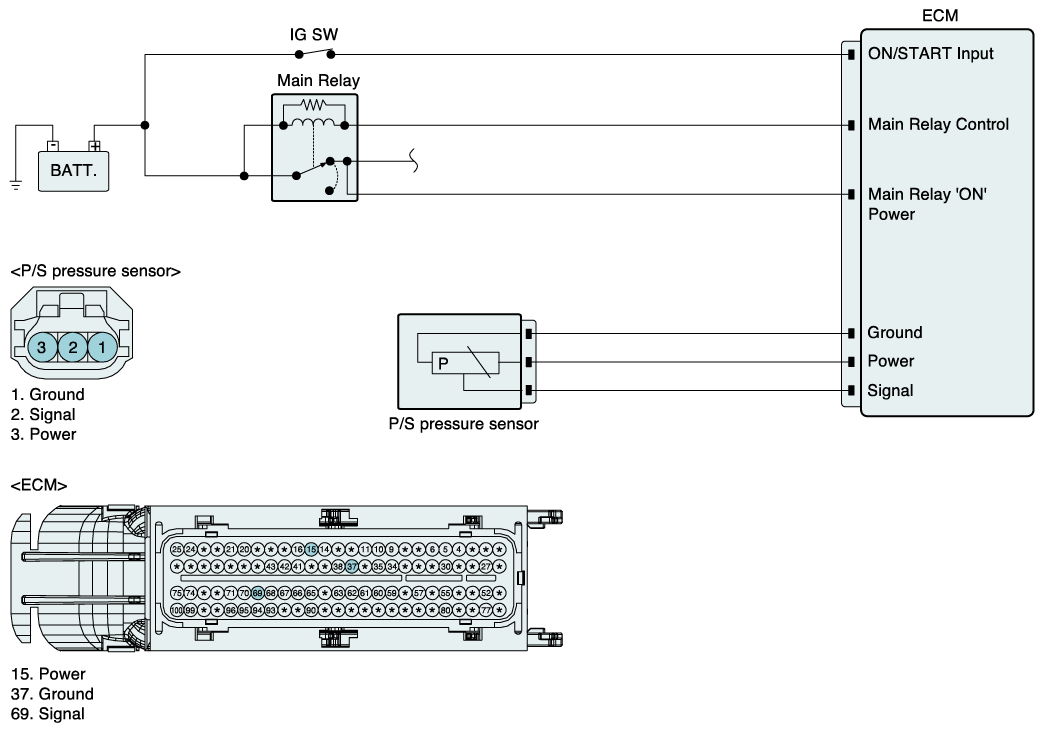

Fig 1: Power Steering Pressure Sensor Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
