Power Circuit Inspection

IG "OFF" and disconnect Cruise switch connector.
IG "ON"
Measure voltage between power terminal of Cruise switch harness connector and chassis ground.
Specification: Approx. B+

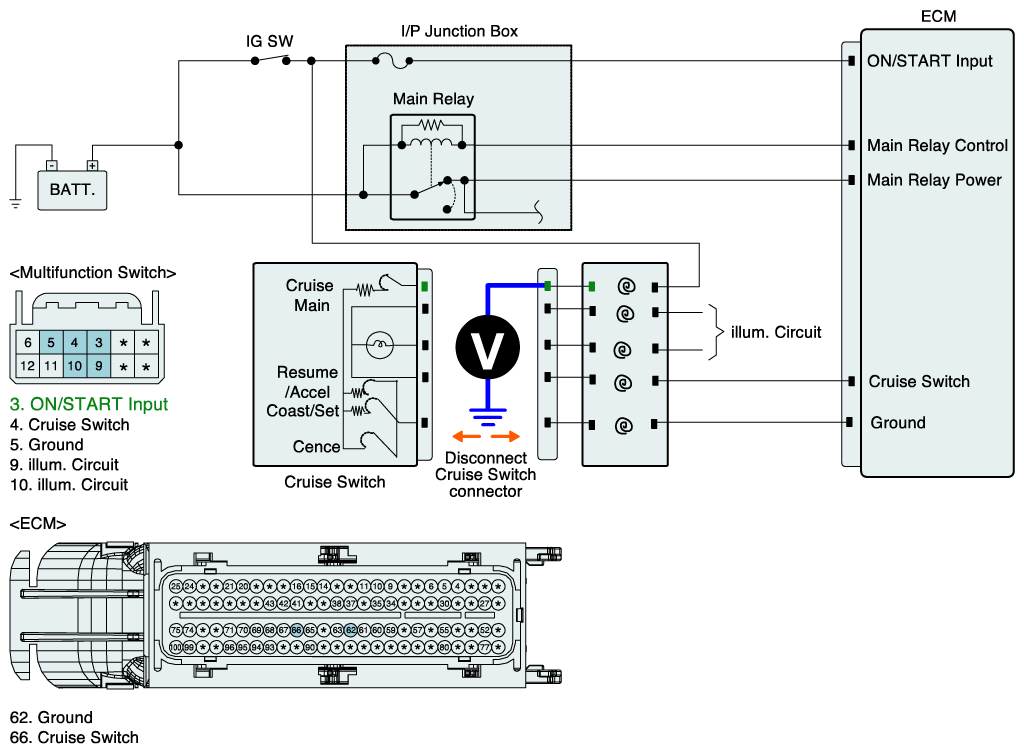

Fig 1: Measuring Voltage Between Power Terminal Of Cruise Switch Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is the measured voltage within specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair open or short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
