Power Circuit Inspection

  1. IG "OFF" and disconnect APS connector.
  2. IG "ON"
  3. Measure voltage between APS2 power terminal of APS harness connector and chassis ground.

    Specification:  Approx. 5V

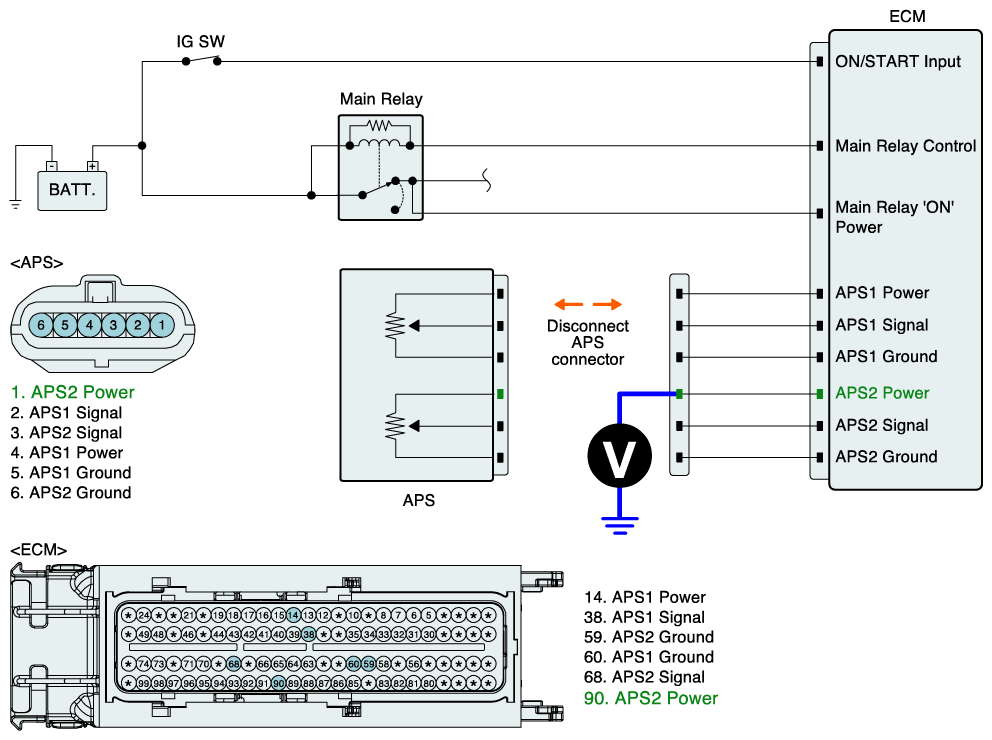

    Fig 1: Measuring Voltage Between APS2 Power Terminal Of APS Harness Connector And Chassis Ground
    G07252357Courtesy of HYUNDAI MOTOR CO.
  4. Is the measured voltage within specification?

    YES

    NO
