Component Location

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

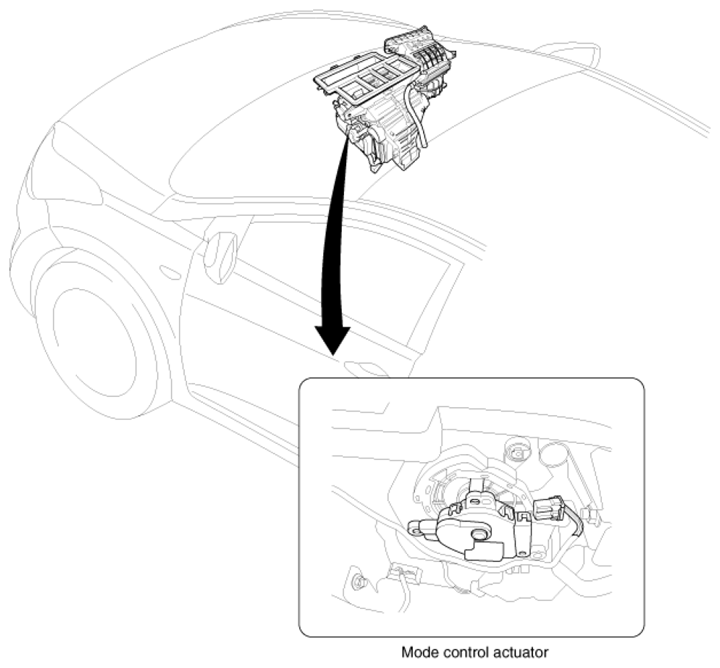

Fig 1: Identifying Mode Control Actuator Components
G07257051Courtesy of HYUNDAI MOTOR CO.
