Components and Components Location: Components

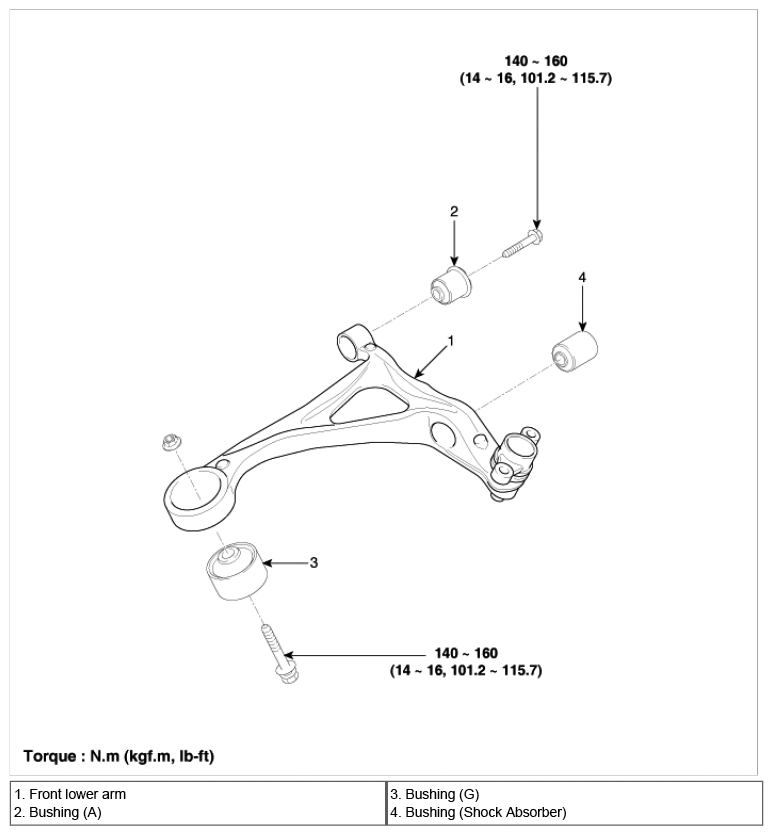

Fig 1: Exploded View Of Front Lower Arm With Torque Specifications
G06805263Courtesy of HYUNDAI MOTOR CO.
