Components and Components Location: Components

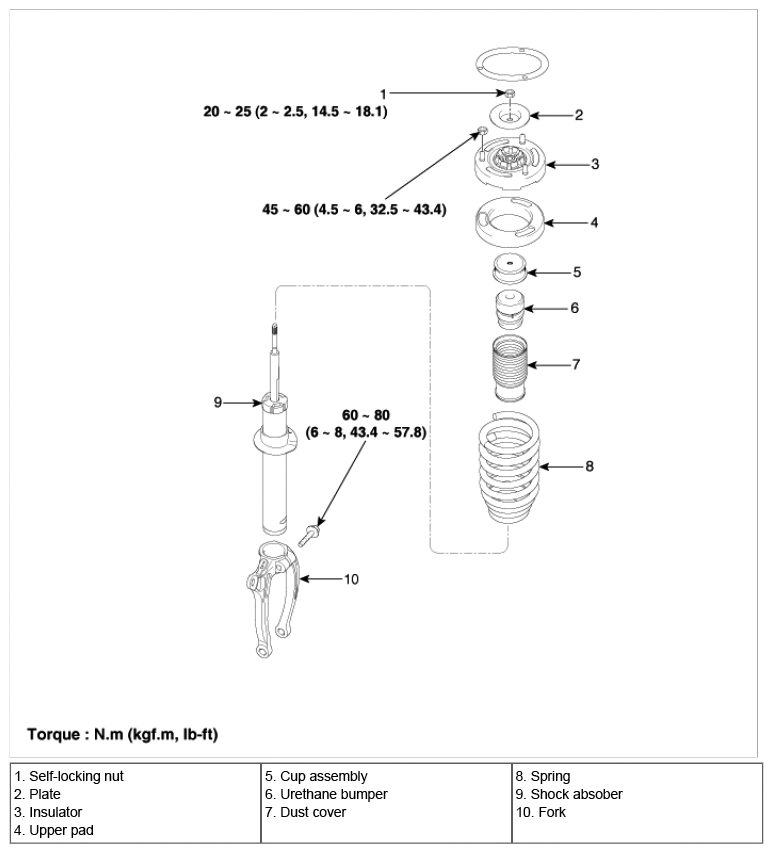

Fig 1: Exploded View Of Front Strut Assembly With Torque Specifications
G06805246Courtesy of HYUNDAI MOTOR CO.
