Components and Components Location: Components

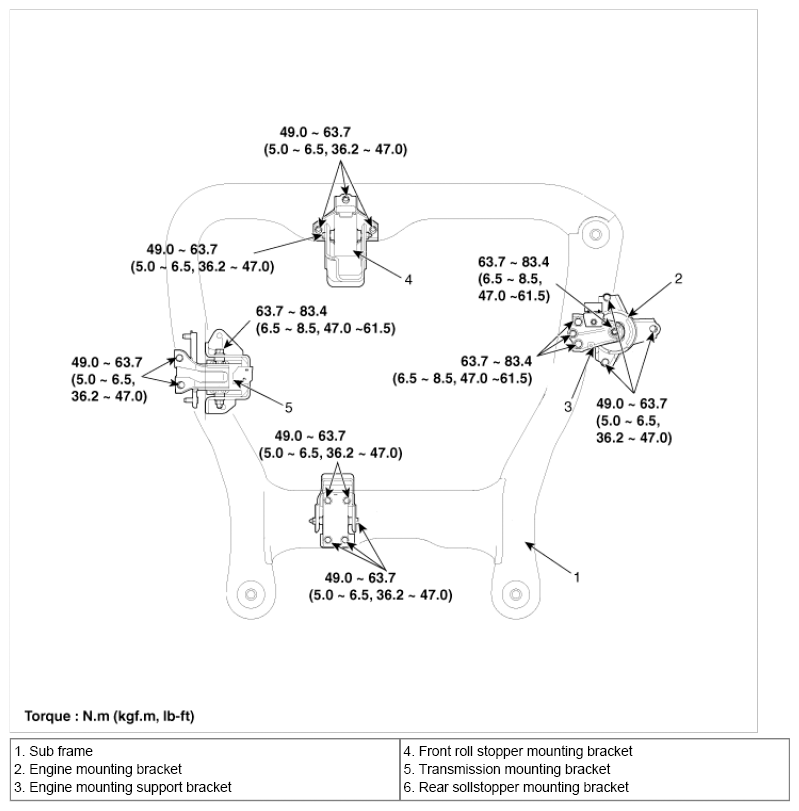

Fig 1: Engine Mounting Components Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
