Monitor Scantool Data

  1. Connect scantool to Data Link Connector(DLC).
  2. IG "ON".
  3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
  4. Read "DTC Status" parameter.

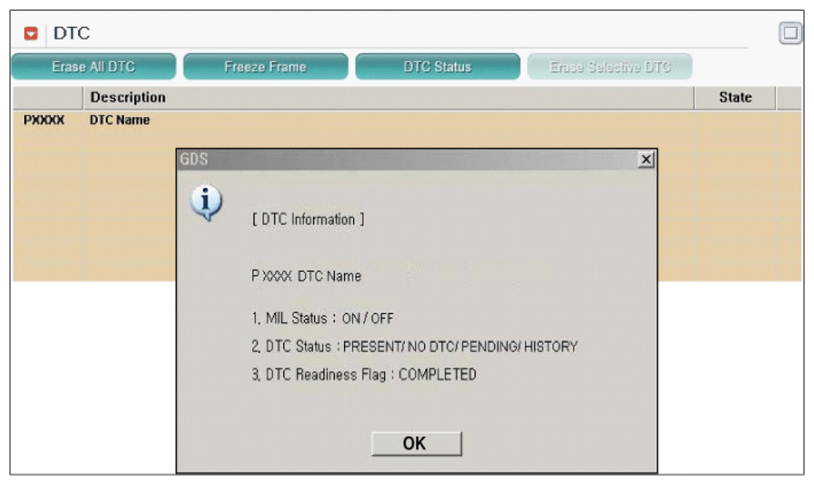

    Fig 1: Display DTC Status Parameter
    G07251441Courtesy of HYUNDAI MOTOR CO.
  5. Is parameter displayed "Present fault"?

    YES

    NO

    • Clear DTC and check if this DTC is set after test-driving under enable conditions. If DTC isn't displayed after the test, it was intermittent fault. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
